VIDP sid path terminator

Tech Log The very best in practical technical discussion on the web

VIDP sid path terminator

Old 11th May 2022, 00:47
  #1 (permalink)
Thread Starter

Join Date: Mar 2012
Location: Aircraft
Posts: 17
VIDP sid path terminator

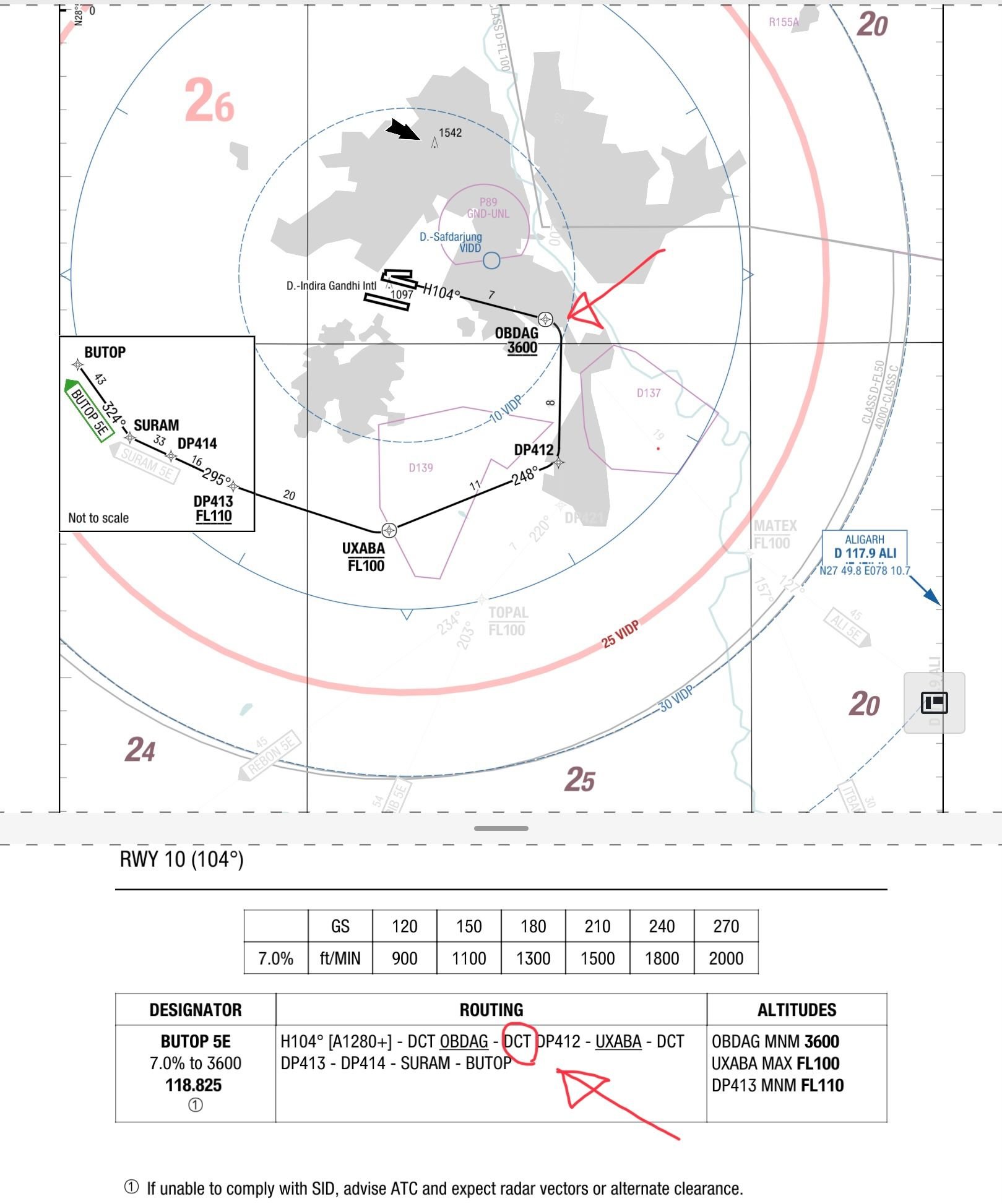

The path terminators of VIDP rw 09 and 10 rnav sid ,ALI 5D,ALI 5E,ITBAN 5D,ITBAN 5E after PABGU and OBDAG are DIRECT TO FIX
according to INDIA AIP but our company LIDO charts are TRACK TO FIX.Please help me to verify which one is correct? (AIP or LIDO)
Thank you.

Last edited by Noknoipobin; 11th May 2022 at 00:55. Reason: To delete duplicate word.
Noknoipobin is offline
Old 11th May 2022, 01:05
  #2 (permalink)
Thread Starter

Join Date: Mar 2012
Location: Aircraft
Posts: 17


Noknoipobin is offline
Old 11th May 2022, 08:40
  #3 (permalink)

Join Date: Aug 2009
Location: Seat 0A
Posts: 534
I don't see any disagreement, both are fly-over, but there is no way for a nav database to be coded so that the plane turns direct to a fix after a fly-over. The result is that it will turn after passing the previous point and then reintercept the direct line between the two fixes. The lido chart represents just that.
STBYRUD is offline
Old 11th May 2022, 09:03
  #4 (permalink)

Only half a speed-brake

Join Date: Apr 2003
Location: Not commuting home
Age: 44
Posts: 3,796
Noknoipobin Are you using Lido NAV db?

For the moment I am not convinced it's track-to fix based on what you posted. Certainly a conclusion which cannot be drawn from the chart itself. It looks a bit as a DF, actually.

BTW are you not highlighting the wrong line? It's path-terminator, the inbound leg is stored within its ending waypoint.
FlightDetent is offline
Old 11th May 2022, 09:10
  #5 (permalink)

Only half a speed-brake

Join Date: Apr 2003
Location: Not commuting home
Age: 44
Posts: 3,796
Originally Posted by STBYRUD View Post
The result is that it will turn after passing the previous point and then reintercept the direct line between the two fixes.
Describes well Track-to-fix or course-to-fix PTs. Unlike the DF path terminator which will provide for a simple direct steer from the where ever the turn rolls out.
FlightDetent is offline
Old 11th May 2022, 09:49
  #6 (permalink)
Thread Starter

Join Date: Mar 2012
Location: Aircraft
Posts: 17

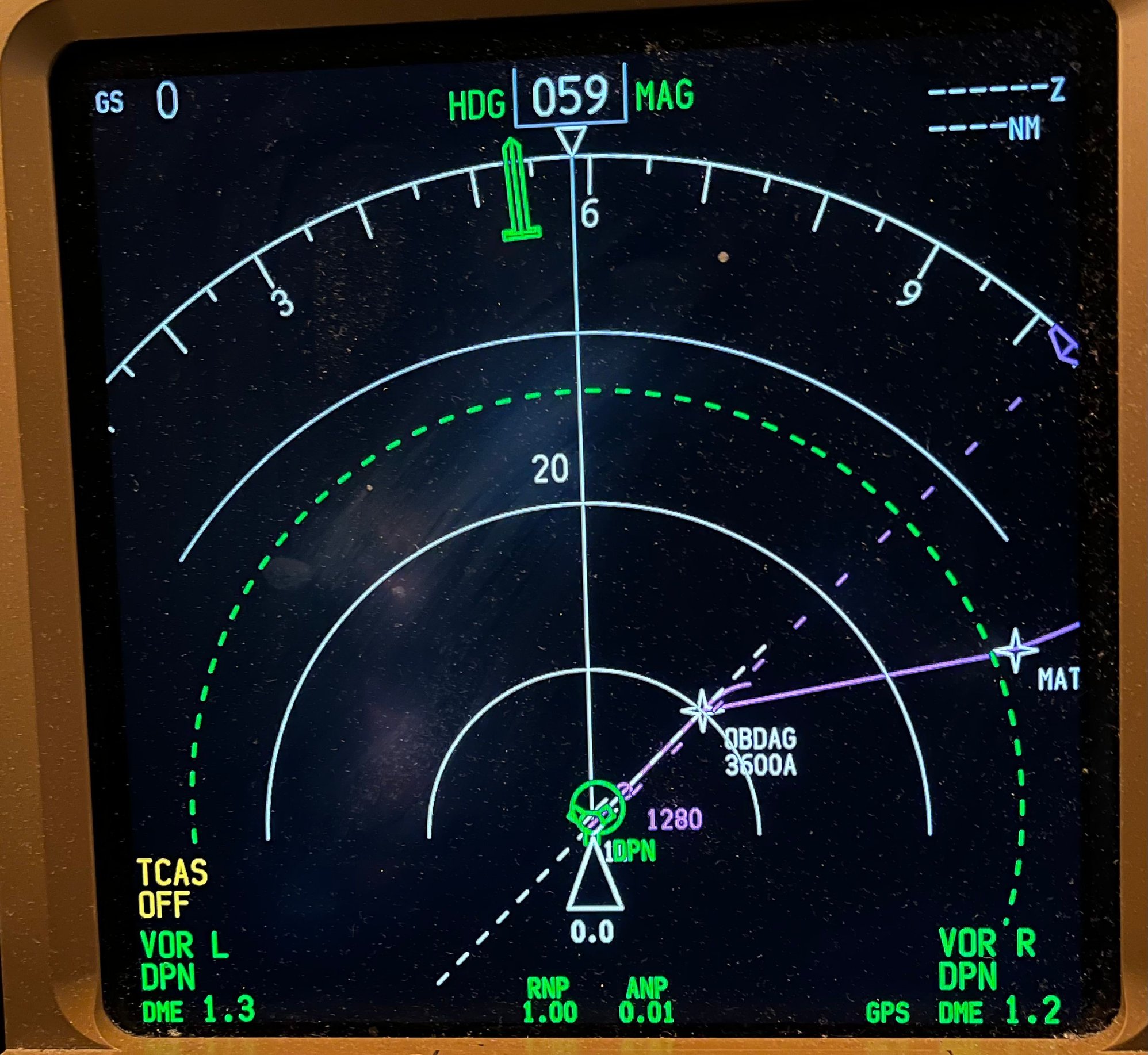

In LIDO chart ,if it is DF it must be coded DCT before that point in chart text. Aircraft must turn directly to next waypoint (MATEX) instead of turning to intercept track from OBDAG to MATEX. Even in the graphic chart there is no track number but it is a TRACK TO FIX. On that day my aircraft turned to intercept track.
