EMIRATES A380 BNE

Rumours & News Reporting Points that may affect our jobs or lives as professional pilots. Also, items that may be of interest to professional pilots.

EMIRATES A380 BNE

Old 2nd Jul 2022, 10:16
  #1 (permalink)
Thread Starter

Join Date: Aug 2007
Location: All over the Planet
Posts: 825
EMIRATES A380 BNE

It looks as though EK have a mystery on its hands

https://www.airlive.net/breaking-an-...d2cm1hf4to1_go
Ken Borough is offline
Old 2nd Jul 2022, 11:16
  #2 (permalink)

Join Date: Jan 2008
Location: Reading, UK
Posts: 14,098
I suspect that a blown tyre (or a wheel, even) will rapidly put an end to any mystery.
DaveReidUK is offline
Old 2nd Jul 2022, 13:14
  #3 (permalink)

Join Date: Jul 2000
Location: Dubai - sand land.
Age: 53
Posts: 2,828
A blown tyre is hardly a mystery…
White Knight is offline
Old 2nd Jul 2022, 18:25
  #4 (permalink)

Join Date: Dec 2018
Location: Florida
Posts: 148
https://viewfromthewing.com/emirates...-its-fuselage/
Lake1952 is offline
Old 2nd Jul 2022, 20:00
  #5 (permalink)

Join Date: Oct 2009
Location: Spain and Gibraltar
Posts: 117
Originally Posted by DaveReidUK View Post
I suspect that a blown tyre (or a wheel, even) will rapidly put an end to any mystery.
Exactly correct apparently!
Kevlar lining mod needed for that area?
Nil by mouth is offline
Old 2nd Jul 2022, 20:34
  #6 (permalink)

Join Date: Dec 2018
Location: Florida
Posts: 148
While there may not be a mystery as to WHAT happened, what are the possible ramifications of this event? What is the potential for more significant damage to the aircraft and its occupants?

And how should this event have been handled by the crew? Passengers describe a significant sound attached to this event. Was the cockpit crew aware that something had happened? Someone in the cabin crew must have heard the noise as well. One would assume that the cockpit was notified.. The event occurred 30-45 minutes after takeoff, so close to cruising altitude.

If the cockpit could have seen the damage to the aircraft, I assume that they would have returned to DXB at that point in the flight.
Lake1952 is offline
Old 3rd Jul 2022, 00:17
  #7 (permalink)

Join Date: Feb 2011
Location: Oz
Posts: 1,363
Originally Posted by Lake1952 View Post
While there may not be a mystery as to WHAT happened, what are the possible ramifications of this event? What is the potential for more significant damage to the aircraft and its occupants?
Ramifications exist to pretty much any decision one makes, hardly unique to this one, all decisions have consequences, just need to work out which one isn't the worst. The Ramifications are more aligned to ones decision making.

I highly doubt inside the bay Airbus has installed infrastructure that could cause significant airframe issues should a wheel decide to cause problems. I don't believe much more significant damage would have occurred beyond this, however let the engineers answer that one.

If the cockpit could have seen the damage to the aircraft, I assume that they would have returned to DXB at that point in the flight
Landing at that weight is another problem in itself, especially if one has wheel problems. A380 rough sort of calculations, would be 8 hours holding to get to a weight that I would be comfortable with.

With the lack of info they had available, its either hold for 8 hours, or continue to BNE. First option you will never get in trouble for. I understand holding for such a timeframe is extremely unpopular with the punters down the back, and potential pressure from other pilots next to you against such a long winded hold, but I can't say I've ever seen a training department throw the book at someone for making that call.

Last edited by PoppaJo; 3rd Jul 2022 at 00:35.
PoppaJo is offline
Old 3rd Jul 2022, 00:36
  #8 (permalink)

Join Date: Jan 2009
Location: Cab of a Freight Train
Age: 39
Posts: 954
Originally Posted by DaveReidUK View Post
I suspect that a blown tyre (or a wheel, even) will rapidly put an end to any mystery.
You don't subscribe to The Aviation Herald's theory of a missing bolt from the NLG??!?

According to The Aviation Herald, the hole could be coming from a detached bolt in the nosegear.
Wasn't there another A380 that had similar damage in the last year or two? Or am I thinking of a 777? I am sure I recall another, similar, incident, but the details are a bit hazy.
KRviator is offline
Old 3rd Jul 2022, 00:41
  #9 (permalink)

Join Date: Dec 2013
Location: Weltschmerz-By-The-Sea, Queensland, Australia
Posts: 1,183
Thats a wing/body fairing in an unpressurised part of the aircraft. Absent any way convenient way to actually visualise that damage why would the crew return an apparently normal aircraft back to DXB?

PoppaJo, you've been flying the 737 too long. The 380 has fuel dumping capability.
Australopithecus is offline
Old 3rd Jul 2022, 00:53
  #10 (permalink)

Join Date: Feb 2011
Location: Oz
Posts: 1,363
Originally Posted by Australopithecus View Post

PoppaJo, you've been flying the 737 too long. The 380 has fuel dumping capability.
From memory only, I recall the Super cannot jettison fuel to get below MLW. Ie- you will land with 40/50/60T still too heavy, hence the long hold to burn (should one elect to land below in a circumstance). CG Limit is reached with significant fuel on board, cannot offload further unless one wants further issues. I am sure the A380 drivers can elaborate more.
PoppaJo is offline
Old 3rd Jul 2022, 03:44
  #11 (permalink)

Join Date: Dec 2013
Location: Weltschmerz-By-The-Sea, Queensland, Australia
Posts: 1,183
My apologies then Poppa. On other types Airbus gives lots of latitude to land over weight if needed. I can’t imagine that landing 40 tonnes over would be a big deal if needed. In this case how would you reconcile a hypothetical subjective report from the cabin if the aircraft was flying normally, no leaks or vibrations and no cargo fire warnings?

Anyway, I like the magic nosewheel bolt theory. It introduces an element of fantasy to how we previously understood aerodynamics.
Australopithecus is offline
Old 3rd Jul 2022, 05:26
  #12 (permalink)

Join Date: May 2002
Location: GC Paradise
Posts: 1,061
The Aviation Herald reported a missing bolt and end cap from the nose gear.
It also reported that the crew suspected a blown tyre on take-off.
It also reported a hole in the wing root fairing,
Aviation Herald made no linkage to any event causing the other.

However, one could link the events logically and speculate that the bolt and/or end cap fell off during the takeoff roll and damaged one of the centre gear tyres which exploded after gear retraction.

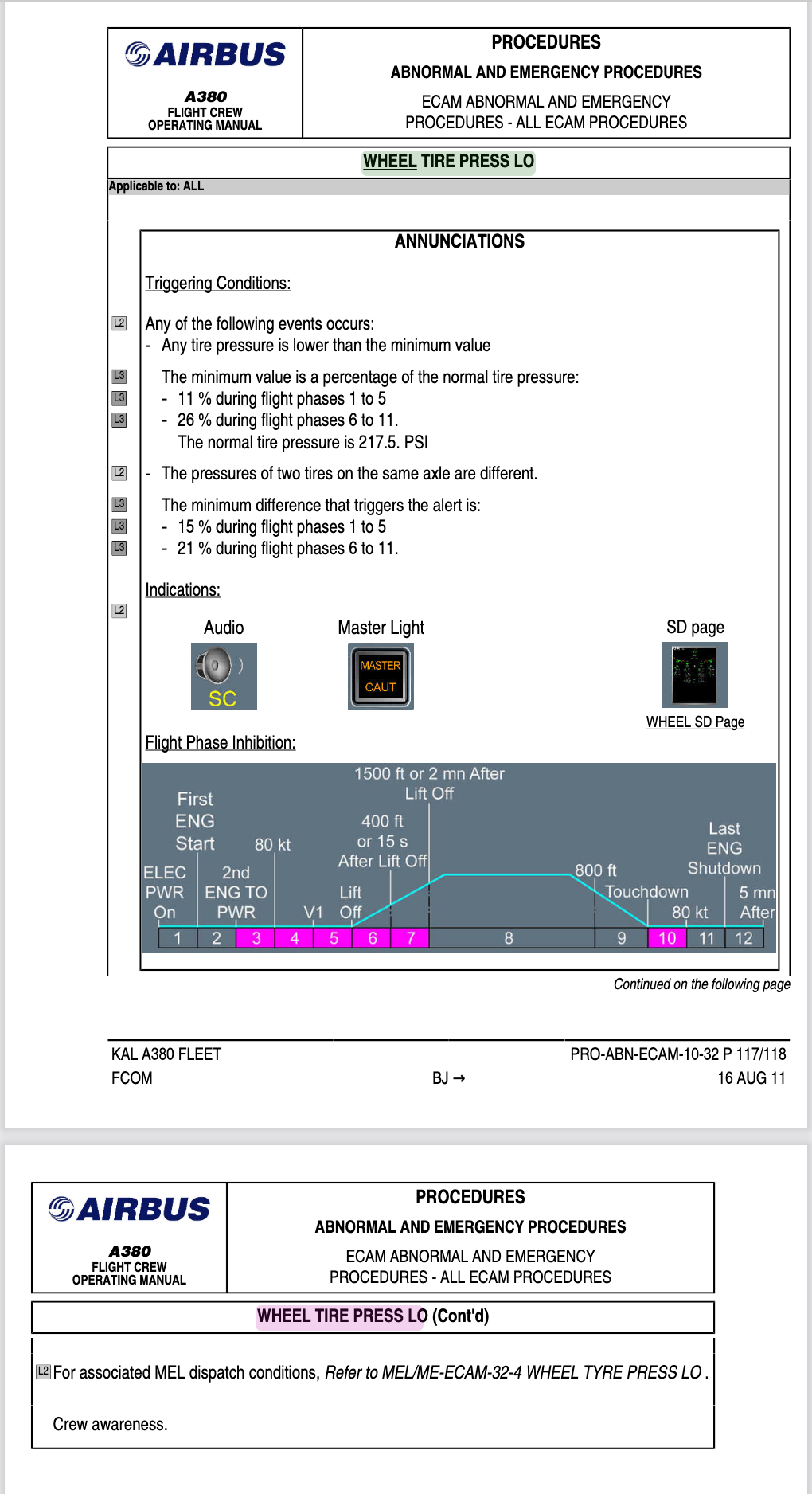

As far as A380 Emergency Procedures go, possibly the only indication that the crew had was an ECAM telling them that the tyre pressure was low and WHEEL page showing the actual low pressure or XX if the sensor was damaged.

A380 FCOM says that abnormal action for WHEEL TIRE PRESSURE LO > Crew Awareness



Last edited by FlexibleResponse; 3rd Jul 2022 at 06:03.
FlexibleResponse is offline
Old 3rd Jul 2022, 06:29
  #13 (permalink)

Join Date: Jan 2008
Location: Reading, UK
Posts: 14,098
Originally Posted by KRviator View Post
You don't subscribe to The Aviation Herald's theory of a missing bolt from the NLG??!?

According to The Aviation Herald, the hole could be coming from a detached bolt in the nosegear.
No, I don't.

That's to say, in the absence of any evidence I don't subscribe to the theory that the two events are necessarily connected (npi).

Aviation Herald is great at reporting facts, but its efforts at analysis are frequently less successful, often concluding that 2 + 2 = 5.
DaveReidUK is offline
Old 3rd Jul 2022, 06:53
  #14 (permalink)

Join Date: Mar 2005
Location: N/A
Posts: 4,541
Make of it what you will.



megan is offline
Old 3rd Jul 2022, 07:05
  #15 (permalink)

Join Date: Jun 2001
Location: FNQ ... It's Permanent!
Posts: 3,902
Part of the panel came off? Happens.
Capt Fathom is offline
Old 3rd Jul 2022, 07:23
  #16 (permalink)

Join Date: Apr 2011
Location: aus
Posts: 647
Originally Posted by Lake1952 View Post

Was the cockpit crew aware that something had happened?
The flight crew knew because they mentioned it when they were landing to have emergency services on standby because they blew a tire. They probably didn't know the extent because it would seem more logical to land at their mainbase where it would be easier for repairs to be made to the aircraft, compared to a 'remote' (compared to main base) location
rattman is offline
Old 3rd Jul 2022, 07:24
  #17 (permalink)

Join Date: Feb 2019
Location: Sandpit
Posts: 44
Question from a non-pilot but (ex) aerodynamicist: Wouldn't such a hole affect the aerodynamic characteristics of the aircraft; asymmetrical drag, increased fuel burn, noise, buffeting etc? Clearly not perceptible to the pilots in this case, but I expect that a rigorous examination of the data would show some deviation from "normal" flights?
sheikhthecamel is offline
Old 3rd Jul 2022, 08:26
  #18 (permalink)
fdr

Join Date: Jun 2001
Location: 3rd Rock, #29B
Posts: 1,379
Originally Posted by sheikhthecamel View Post
Question from a non-pilot but (ex) aerodynamicist: Wouldn't such a hole affect the aerodynamic characteristics of the aircraft; asymmetrical drag, increased fuel burn, noise, buffeting etc? Clearly not perceptible to the pilots in this case, but I expect that a rigorous examination of the data would show some deviation from "normal" flights?
not that much in that area. There is a fair amount of separated flow near that location. There would be localized vibration and noise increase. If the flow impinged the tailplane then there could be some low-frequency vibration. As often as not the crews get a surprise after landing as to how much damage has occurred. Damage around the nose is more noticeable, or on the wing LE... this plane below lost 3 out of 6 leading edges... flew like a brick.



B747's at hot/high heavy airports used to routinely blow body gear tyres at rotate, they would mainly shred the pack fairings, and we would find out by the ATC reports. The old reef runway at Hickalulu also used to have lots of 747 tyre pieces around the runway, and bits of fairings. stopping using retreads at least on the body gear reduced lots of annoyance. At least 744s would tell you that a tyre had failed, the classic left it to the imagination.
fdr is offline
Old 3rd Jul 2022, 08:57
  #19 (permalink)

Join Date: Dec 2014
Location: Schiphol
Posts: 400
When you look at the damage the skin is ripped off and outward along a zipper row of fasteners and bent forward … and remained bent that way for many hours in flight…
suggests a significant overpressure (build up) acting inside to out …

a hole in a fairing would not immediately get me excited… if no lines of any kind would be cut … and the pressure fuselage has no damage …

Common sense suggests that for the pilots the difficult thing would be to find out the presence and level of:
1. first damage … for example a bolt flying,
2. immediate second damage … for example a tire being blown as a consequence, …( but they did not report a flat until now and the photo does not show that)… where the pressure (or frags) rips off a piece of fairing,
3. delayed third damage… for example minor damage by either 1. or 2. which initially does not show up on instruments but can get worse over time … for example lines or skin damage progressing… especially when it hit a weak spot ..

So even with a mild event it would be wise to more closely monitor instruments, let a pilot or dead header do a walk around in the cabin/fuselage, instruct the ccw to report unusual issues, … for such a long flight and over water the risk of 3. increases and the workload for pilots increases,

burning fuel and reducing weight reduces other risks, … for example with gear damage…

next to continue or return/divert an option would be to change your route in flight to pass closer to acceptable airports… when that’s not possible, based on criteria, it might be wise to divert or return…

A late flight engineer always told me helping in cases like this was the main function of an FE … his favourite example being a long tear in a wing/surface, where the pilots wanted to ground and he said no problemo …

So it’s up to the pilots these days to find the proper compromise.

And an interesting case for pilotless flying design studies.
For example (one of many questions based on this incident alone) … does a future “aircraft system (which today still includes aircraft plus pilots plus ccw plus (some knowledgable) passengers)” have to recognise that “something” happened, instead of recognising that a “specific thing” happened…and how does that compare with a piloted aircraft (also see the remark above about pilots being surprised about the degree of damage after landing).




Last edited by A0283; 3rd Jul 2022 at 12:48.
A0283 is offline
Old 3rd Jul 2022, 10:25
  #20 (permalink)

Join Date: Feb 2017
Location: Isla Grande
Posts: 980
Originally Posted by PoppaJo View Post
From memory only, I recall the Super cannot jettison fuel to get below MLW. Ie- you will land with 40/50/60T still too heavy, hence the long hold to burn (should one elect to land below in a circumstance). CG Limit is reached with significant fuel on board, cannot offload further unless one wants further issues. I am sure the A380 drivers can elaborate more.
What is a A380 "Super" ?

No fuel dump on A380 ?

Don't believe.
gearlever is offline
