R22 tail-rotor pedal failure

Rotorheads A haven for helicopter professionals to discuss the things that affect them

R22 tail-rotor pedal failure

Old 12th Sep 2020, 17:56
  #1 (permalink)
Thread Starter

Join Date: May 2003
Location: The Wild West... and Oz
Posts: 824
R22 tail-rotor pedal failure

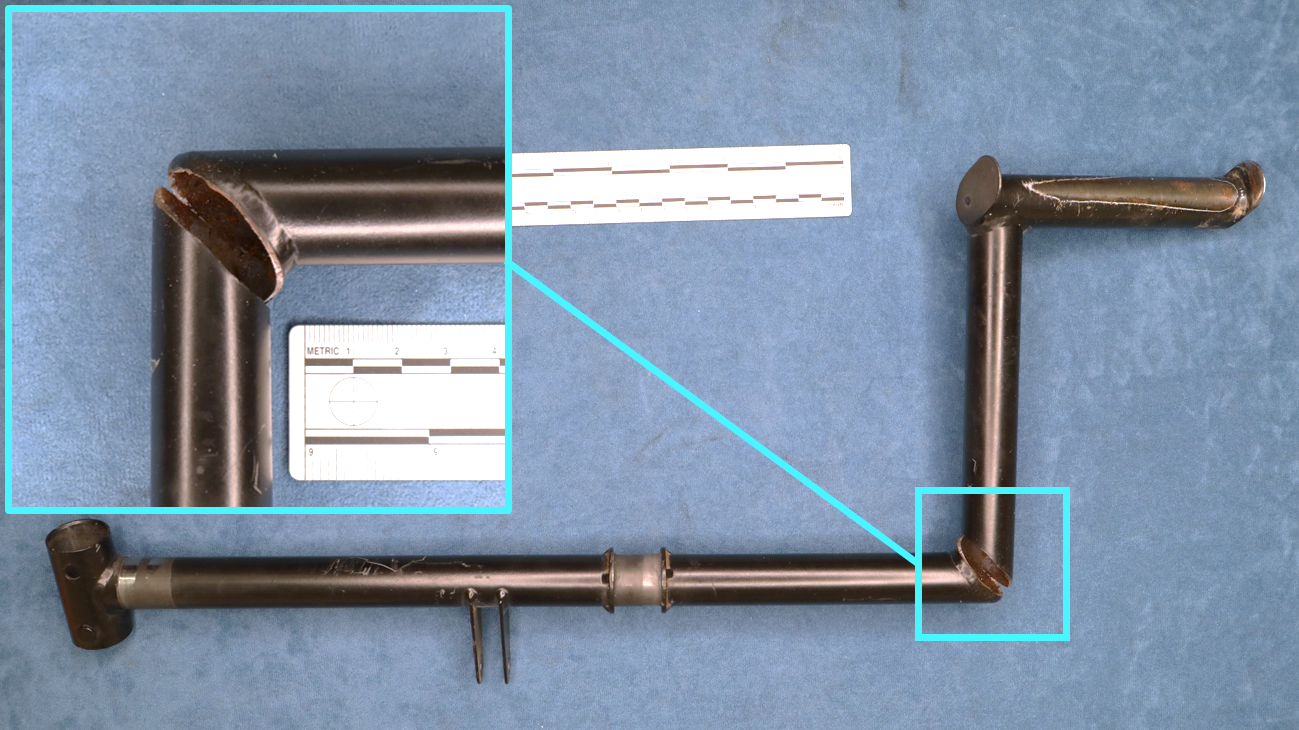

"A Robinson R22 helicopter’s right tail rotor pedal failed due to fatigue cracking during mustering operations, an ATSB investigation details"

https://www.atsb.gov.au/media/news-items/2020/undetected-fatigue-failure/


ATSB
BigMike is offline
Old 12th Sep 2020, 18:10
  #2 (permalink)

Join Date: Jun 2002
Location: Geneva, Switzerland
Age: 54
Posts: 1,619
Ouch

Very lucky to walk away from this one !
atakacs is offline
Old 12th Sep 2020, 18:16
  #3 (permalink)

Join Date: Dec 2001
Location: FL, USA
Posts: 2,492
Is t that something you check during the preflight?
B2N2 is offline
Old 12th Sep 2020, 18:21
  #4 (permalink)

Join Date: Aug 2013
Location: Europe
Posts: 136
You check your pedals connection in the underfloor part???
evil7 is offline
Old 12th Sep 2020, 18:27
  #5 (permalink)

Join Date: Dec 2001
Location: FL, USA
Posts: 2,492
My mistake, from memory thought it was visible.

B2N2 is offline
Old 12th Sep 2020, 19:18
  #6 (permalink)

Join Date: Feb 2003
Location: Harwich
Age: 62
Posts: 748
Have you SEEN those videos of mustering operations? There is no operation like it. But, the factory don’t seem to have tested for it.
Hilico is offline
Old 14th Sep 2020, 02:12
  #7 (permalink)

Join Date: Jul 2014
Location: South East Asia
Age: 51
Posts: 130
could one still control the tail ....
1/ with one foot alternatively in front and behind the only left pedal .. mabe not
2/ or by frictioning your foot below that one pedal ... could work?
3/ by moving your feet to the copilot side ... that I got to see!
Agile is offline
Old 14th Sep 2020, 03:05
  #8 (permalink)

Join Date: Sep 2002
Location: Great South East, tired and retired
Posts: 2,963
Slide completely to the left side. Even if the left side of the cyclic isn't there, you can still fly with the right hand on the centre prong. It might be a bit of an exercise in the air, but chopper pilots are super-human, aren't they?

Coping with the cg change is something else, though. Main fuel on left side.
Ascend Charlie is online now
Old 14th Sep 2020, 03:28
  #9 (permalink)

Join Date: Jun 2004
Location: Depends on the day!
Posts: 220
A victim of the old 4000 psi of pressure on one pedal, 4001 psi on the direction of turn...........
bellfest is offline
Old 14th Sep 2020, 05:18
  #10 (permalink)

Join Date: May 2001
Location: passing a cloud
Posts: 327
Hey AC.
I wonder if it was result of a Hufnagel sequence maneuver?
LOL
TWOTBAGS is online now
Old 14th Sep 2020, 07:39
  #11 (permalink)

Join Date: Sep 2002
Location: Great South East, tired and retired
Posts: 2,963
T-Bags, Oh, I wish I could have photographed your eyes when you saw that one happen! Looked like VASIS, but both red!
Ascend Charlie is online now
Old 14th Sep 2020, 10:10
  #12 (permalink)

Join Date: Sep 2000
Location: Oz
Posts: 73
I teach students who are bracing both feet against the pedals to place their right foot on the floor. Torque in the 22 is taking the nose right, so it’s actually very easy to fly left foot only. Apply left foot/pedal, nose yaws left. Bring left foot/pedal back and Nose yaws right.

Teaches the students that they are being far too heavy with their feet.


So in the case of this chopper, I’d say no problem getting it down safely.

Huey

Last edited by huey; 14th Sep 2020 at 10:10. Reason: Autocorrect, wrong word used
huey is offline
Old 14th Sep 2020, 10:47
  #13 (permalink)

Join Date: Apr 2010
Location: USA
Posts: 560
Originally Posted by huey View Post
So in the case of this chopper, I’d say no problem getting it down safely.
The article said the pedals became jammed. That's a bit more challenging than just having a single, operable pedal, if I'm understanding your statement correctly?
aa777888 is online now
Old 15th Sep 2020, 00:19
  #14 (permalink)

Join Date: Sep 2000
Location: Oz
Posts: 73
Ah, I missed that bit. Yes jammed pedals would make things far more difficult.

Huey
huey is offline
Old 15th Sep 2020, 15:51
  #15 (permalink)

Join Date: Dec 2000
Location: midcoast US
Posts: 159
Originally Posted by bellfest View Post
A victim of the old 4000 psi of pressure on one pedal, 4001 psi on the direction of turn...........
I think you’re spot on. That tubing is thin-wall, but sufficient for the light pressures of the R22. I just flew a 22 for the first time in 15 years and found myself tensing up and overcontrolling, no doubt with more pedal pressure than needed.
rotorfan is offline
Old 15th Sep 2020, 16:26
  #16 (permalink)

Join Date: Apr 2000
Location: EGDC
Posts: 8,046
I once took control from a student who was messing up a steep turn (not in a Robbie) and couldn't move the pedals as he had tensed up and was pushing very hard with both feet - I had to shout at him to take his feet off the pedals so I could recover to S and L flight.
crab@SAAvn.co.uk is offline
Old 18th Sep 2020, 02:43
  #17 (permalink)

Join Date: Aug 2009
Location: australia
Age: 56
Posts: 39
Originally Posted by Ascend Charlie View Post
Slide completely to the left side. Even if the left side of the cyclic isn't there, you can still fly with the right hand on the centre prong. It might be a bit of an exercise in the air, but chopper pilots are super-human, aren't they?

Coping with the cg change is something else, though. Main fuel on left side.
so if you have your right hand on the center prong what do you move the other “prong “ with?
rottenjohn is offline
Old 18th Sep 2020, 05:10
  #18 (permalink)

Join Date: Jul 2014
Location: South East Asia
Age: 51
Posts: 130
OK I got an idea for people with long legs
  1. Slide one leg to the passenger side, scoot over to the middle location (one but chick on each seat)
  2. grab the center prong and fly the helo like a middle cyclic stick aircraft
  3. grab the passenger collective for pitch control
Last step, let the NTSB figure it out at the scene of the crash
Agile is offline
Old 18th Sep 2020, 06:11
  #19 (permalink)

Join Date: Jun 2016
Location: Brantisvogan
Posts: 696
Originally Posted by Agile View Post
OK I got an idea for people with long legs
  1. Slide one leg to the passenger side, scoot over to the middle location (one but chick on each seat)
  2. grab the center prong and fly the helo like a middle cyclic stick aircraft
  3. grab the passenger collective for pitch control
Last step, let the NTSB figure it out at the scene of the crash
Shouldn't be a lengthy investigation, the rectal center collective will be a dead giveaway.
Bell_ringer is offline
Old 18th Sep 2020, 10:14
  #20 (permalink)

Join Date: Apr 1998
Location: Mesopotamos
Posts: 1,355
Yep, that lingering outback bull dust gets into everything.

Switching sides will only confirm that.
cattletruck is offline
