Wing Fold & Locking Mechanism

Tech Log The very best in practical technical discussion on the web

Wing Fold & Locking Mechanism

Old 17th Apr 2020, 12:00
  #1 (permalink)
Thread Starter

Join Date: Feb 2000
Location: Vic
Age: 53
Posts: 444
Wing Fold & Locking Mechanism


Looking at a typical aircraft with folding wings such as the Skyraider.

When the wings are unfolded, how is the stress from airloads on the outer wing panel transmitted through the join in the spar. Logic would suggest that some locking pin is used, but the pin is smaller than the spar, so how does the pin not that is much smaller than the spar carry the loads. Is it as simple as a bloody strong pin?
Ozgrade3 is offline
Old 17th Apr 2020, 12:33
  #2 (permalink)

Join Date: Jan 2014
Location: N5109.2W10.5
Posts: 664
Originally Posted by Ozgrade3 View Post
Is it as simple as a bloody strong pin?
I can count 16 pins on this one:
How folding wings work.

Goldenrivett is offline
Old 17th Apr 2020, 13:04
  #3 (permalink)

Join Date: Mar 2001
Location: I wouldn't know.
Posts: 4,190
I would suggest going to the next glider field and checking out how the wings are secured there, after all they are built to be taken apart easily (folding the wings, often at several points along the wingspan), also to carry the loads once everything is back in place. And they have design at least +5.3g/-2.65g in normal operation (yes, every glider is according to EASA at least an utility category plane). From my experience, and that is a bit out of date, it is usually one or two bolts for the central point, and quite small pins for mid to outer span points.
Denti is offline
Old 17th Apr 2020, 13:24
  #4 (permalink)

Join Date: Dec 1999
Location: uk
Posts: 697
On the Buccaneer it pretty much was a bloody great pin.


On this picture, about 1/3 of the way from the left hand edge of the wing there is a pale grey ‘spade’ shaped thing with a hole in. When the wing was unfolded, that would engage with the sloped bit on the inboard section of the wing and then the big pin would sequence down through the hole.

HtH
deltahotel is offline
Old 17th Apr 2020, 13:32
  #5 (permalink)

Join Date: Feb 2009
Location: Toronto, Canada
Posts: 27
@ the original poster:
One can also have a steel pin in steel fittings, attached to aluminum spars.
Google something like 'Corsair wing fold mechanism'. I'm not sure but there seems to be just a main spar pin to take mainly bending forces (rotating around a top one, pinned at the bottom), and some mechanism near the leading edge to take torque forces.

Bigger faster aircraft may use a bunch of pins. (Newer ones will also be certified under 'fail safe' rules requiring more damage tolerance, designs where even for the wing in general, there isn't just 1 critical spar, but a bunch of spar webs in the wing.)
pchapman is offline
Old 17th Apr 2020, 14:03
  #6 (permalink)

Join Date: Mar 2019
Location: London
Posts: 19
No question about the "bloody great pin" a third of the way down from the left-hand side of the pic, in fact the top of that pin is visible. It works vertically. However, the red locking fork on the right is surely a transit securing piece that's removed prior to flight? It too has a pin that operates horizontally and it is more clearly visible.

I think.
rb14 is offline
Old 17th Apr 2020, 14:36
  #7 (permalink)

Join Date: Aug 2006
Location: cardiff
Posts: 591
Correct on both counts.

One thing that needs to be considered, is that inflight, the lower part of spar is in tension, while upper is in compression

ivor toolbox is offline
Old 17th Apr 2020, 14:50
  #8 (permalink)

Join Date: Aug 2001
Location: UK
Posts: 1,853
IMHO it's very clever engineering, not just the hinge and locking mechanism, but also pivoting fuel and hydraulic lines, control runs, electrical feeds, and in the case of the Buccaneer, ducting for the 'blown lift'.
spekesoftly is online now
Old 17th Apr 2020, 17:59
  #9 (permalink)

Join Date: Jun 2006
Location: UK
Age: 72
Posts: 41
Re the bloody great pin that some steel alloys are rated at 100 tons per square inch in tension. So not too many pins are needed to support the air loads. Probably more for redundancy in multiple load paths
JohnFTEng is offline
Old 17th Apr 2020, 20:38
  #10 (permalink)

Join Date: Dec 2009
Location: Southwater
Age: 70
Posts: 0
Originally Posted by Ozgrade3 View Post
https://www.youtube.com/watch?v=1F23RciUwDE

Looking at a typical aircraft with folding wings such as the Skyraider.

When the wings are unfolded, how is the stress from airloads on the outer wing panel transmitted through the join in the spar. Logic would suggest that some locking pin is used, but the pin is smaller than the spar, so how does the pin not that is much smaller than the spar carry the loads. Is it as simple as a bloody strong pin?
Gentlemen that reminds me... A question off on a tangent if I may which has come to mind watching that big ole bird start up.
Does a piston engine have a choke for a cold start? Or is there another arrangement like the fifth injector on my car?
RedhillPhil is offline
Old 18th Apr 2020, 01:22
  #11 (permalink)

Join Date: Mar 2005
Location: N/A
Posts: 3,714
Does a piston engine have a choke for a cold start? Or is there another arrangement like the fifth injector on my car?
In the Skyraiders case, No and no. Engine is started on primer (a button you press, located right side of cockpit next to the starter switch) with mixture lever (left side of cockpit) in idle cut off, once running on primer mixture is moved to rich and primer button released.
megan is offline
Old 18th Apr 2020, 09:04
  #12 (permalink)

Join Date: Nov 1999
Location: UK
Posts: 1,594
so how does the pin.......that is much smaller than the spar carry the loads. Is it as simple as a bloody strong pin?
As I understand it, the weight and forces from underslung gas turbine engines, on today's passenger jets, are transmitted to the wing with just two pins. They are big pins though.......
Uplinker is offline
Old 18th Apr 2020, 11:36
  #13 (permalink)

Join Date: Jan 2008
Location: Reading, UK
Posts: 12,634
Originally Posted by Uplinker View Post
As I understand it, the weight and forces from underslung gas turbine engines, on today's passenger jets, are transmitted to the wing with just two pins. They are big pins though.......

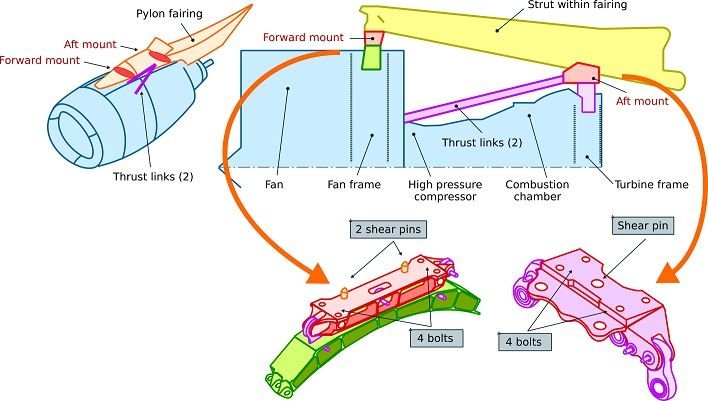

Usually, turbofans are attached via a combination of bolts (which taken mainly vertical and static loads) and shear pins (which take thrust loads, and are designed to release the engine in an impact).

The 737NG, for example, uses eight bolts and three shear pins:


DaveReidUK is offline
Old 19th Apr 2020, 04:27
  #14 (permalink)

Join Date: Oct 2013
Location: McHales Island
Age: 65
Posts: 160
DaveReidUK,

Methinks Uplinker may be referring to the engine strut fuse pins.

Rgds McHale.
Capt Quentin McHale is offline
Old 19th Apr 2020, 11:04
  #15 (permalink)

Join Date: Nov 1999
Location: UK
Posts: 1,594
Thank you both, I stand corrected, (and am slightly relieved, to be honest)

Last edited by Uplinker; 19th Apr 2020 at 11:47.
Uplinker is offline
Old 19th Apr 2020, 11:31
  #16 (permalink)

Join Date: Jun 2001
Location: OZ
Posts: 1,010
Don't forget that wing fold sheer bolts are only loaded in sheer. Simple to calculate and easy to design.
mustafagander is offline
Old 22nd Feb 2021, 05:21
  #17 (permalink)

Join Date: Aug 2015
Location: Oz
Posts: 60
Big G they just slide a bit o timber across so it wont let the wing fold up mate! Treated Hardwood mind you! NOT Wet Pine.....( Wet pine dries and warps )
FPDO is offline
