Old 4th May 2005, 14:29
  #541 (permalink)

Join Date: Jul 2002
Location: UK
Posts: 2,729
H-R,

Gaseous and I were briefly discussing a similar point 'off-forum' a few weeks ago and I know that this refers to the injected version of the 540 but, for the record, the current version of the RII POH states:


On page 7-9, under Systems Description, Engine Controls (page date 3 Oct 2002) it states:

CAUTION
In-flight leaning with engine mixture control is not allowed. Mixture must be full rich during flight.


So, I guess that Frank must've changed his mind enough for it to go from 'not recommended' to 'not allowed'.


Regards,

B73


PS This is in the 'Systems' section rather than the 'Limitations' section of the POH so I guess you could argue that it's still advice rather than an order but I know what I would (or, more importantly, wouldn't) do in flight...
Bravo73 is online now
Old 5th May 2005, 08:26
  #542 (permalink)

Join Date: Nov 2001
Location: Lancashire UK
Posts: 568
Both the R44 and 22 are on the approved model list for the JPI EDM700, and the FAA flight manual update exists, and it is STC'd, so it is theoretically possible to fit this instrument to Robinsons. You may have a job convincing your local CAA man it is a justifiable mod but it is possible. It would probably be easier in the States. It would be even more difficult to convince him that a vernier was justified.

As B73 says, Robbies as supplied should not be leaned on a whim.

I'd love to have a go in a modified, properly certificated one though. Are you up for it H-R?
Gaseous is offline
Old 5th May 2005, 13:41
  #543 (permalink)

Better red than ...

Join Date: Aug 2004
Location: Appleby-in-Westmorland Cumbria England
Posts: 1,406
Rule one in software use "never be the first to try it"

But I guess there has been unofficial use for some years as noted in That Book.
helicopter-redeye is offline
Old 18th May 2005, 03:07
  #544 (permalink)

Join Date: May 2001
Location: queensland australia
Age: 73
Posts: 563
r44 loses fan

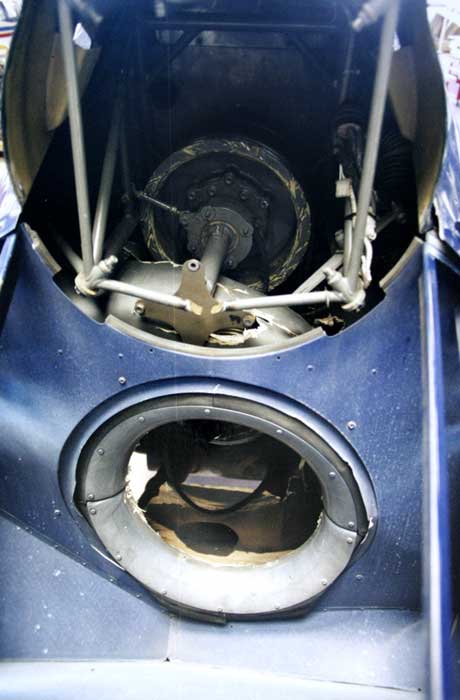

the fan of this r44 came adrift in flight, and over water too.

they had popouts but made it to shore.






imabell is offline
Old 18th May 2005, 05:45
  #545 (permalink)

Join Date: Mar 2005
Location: australia
Posts: 94
Congrats to the pilot!!

I bet his or her arse was puckered up for that!

It's happend on the R22 but i havent heard it on the R44...whats next the main blades??
mustering guru is offline
Old 18th May 2005, 07:40
  #546 (permalink)
PPRuNe Enigma

Join Date: Feb 2001
Location: Scotland
Posts: 427
Phew - wotta mess !

Hey, at least on an R22 it could just fly out the back - The R44 is more enclosed and it looks as though that's helped this one to do a whole load of damage !

There's a big nut with a retaining pin though it that holds the fan to the shaft. The pin is supposed to line up with witness marks on the fan itself. I always check this on my walkround. One time I noticed that the pin wasn't lined up with the marks - and decided not to fly until it had been checked. Glad I did now !!!

Be interesting to find out in due course what the cause of this one was - it looks well shredded.
Grainger is offline
Old 18th May 2005, 08:52
  #547 (permalink)

Senis Semper Fidelis

Join Date: Feb 2001
Location: Lancashire U K
Posts: 1,288
That pilot did very well, and helped himself to a whole load of future life!.

Like most others I was also told to check the pin the paint marks and look for cracks.

It gives me the shivers when you think about the amount of damage that a out of balance fan could cause to the Monocoque tail of the R44.

Well done R44 Pilot!!

PeterR-B
Vfr
Vfrpilotpb is offline
Old 18th May 2005, 16:33
  #548 (permalink)

Join Date: Jun 2004
Location: bill's fridge
Posts: 62
Is that where the drive shaft ended up? It's not usually down there even when sheave at lowest point is it?

The flex plate doesn't look damaged, but did they lose tr drive shaft also?

And that bit of the frame at the bottom, snapped in flight? did the tr ds go through it?
4ero is offline
Old 19th May 2005, 05:35
  #549 (permalink)

Join Date: Sep 2004
Location: Canada
Posts: 64
The nut slipping on the fan is usually caused by the engine being started with the throttle wide open. If this occurs be sure to check that witness stripe and dont fly it if they dont line up. Just my 2 cents.
Auscan is offline
Old 1st Jun 2005, 21:05
  #550 (permalink)

Join Date: Dec 2000
Location: Ask the voices!
Posts: 435
R44 Question??

Can anyone advise the overspeed inspection criteria for an R44?

Thanx in advance
HeliEng is offline
Old 2nd Jun 2005, 10:39
  #551 (permalink)

Join Date: May 2005
Location: Orstrailya
Posts: 30
I recall hearing the cooling fan nut coming loose on some 22's & 44's after overspeeding.Perhaps it might be wise to make sure torque stripes line up with the pin.
cyclicpushover is offline
Old 2nd Jun 2005, 22:02
  #552 (permalink)

Join Date: Dec 2000
Location: Ask the voices!
Posts: 435
Thanks for the answers.

Does anyone know what the criteria is above 112/117% (i.e: Off the calibrated bit of the tacho?)

Thanks again
HeliEng is offline
Old 2nd Jun 2005, 23:19
  #553 (permalink)

Join Date: Jul 2002
Location: Murica.
Age: 41
Posts: 224
Just had a look in the MX manual, only thing I can find is 90%-108% power off and 99%-102% power on, so nothing new...and question not answered.
TIMTS is offline
Old 3rd Jun 2005, 08:21
  #554 (permalink)

Better red than ...

Join Date: Aug 2004
Location: Appleby-in-Westmorland Cumbria England
Posts: 1,406
How do you know you have had an overspeed ????
helicopter-redeye is offline
Old 3rd Jun 2005, 08:24
  #555 (permalink)
puntosaurus
Guest

Posts: n/a
Once off the scale, you need all Mr. Selfish items plus a complete engine strip. Costs about 15-20,000 in total retail depending on what needs to be replaced. From the outside an overspeed sounds dramatically different to the normal engine noise, high pitched, almost screaming. Hull insurance should cover it (minus the excess) but expect your premiums to go up by a couple of thou next year.

Old 3rd Jun 2005, 09:21
  #556 (permalink)

Join Date: Dec 2000
Location: Ask the voices!
Posts: 435
I'm sorry I have been a little inspecific.

I am curious about in flight overspeeds.
HeliEng is offline
Old 3rd Jun 2005, 11:04
  #557 (permalink)

Senis Semper Fidelis

Join Date: Feb 2001
Location: Lancashire U K
Posts: 1,288
Helieng,

Hi how are you, I must suggest caution, if any overspeed has been flagged, one little ditty is always with me on this,

If in doubt, throw it out!!


Don't want anyone to go up in a machine like I once did!!!.


Peter R-B
Vfr
Vfrpilotpb is offline
Old 3rd Jun 2005, 15:06
  #558 (permalink)

Join Date: Dec 2000
Location: Ask the voices!
Posts: 435
Vfrpilotpb,

I am well thanks! And yourself?

This is all hypothetical! (Thank goodness)

I am oh so aware of the dangers of flying in aircraft that have undergone such stresses, it is just that I don't have access to R44 tech manuals anymore!

Hopefully someone can have a quick read and post the info here for me!

Cheers guys
HeliEng is offline
Old 20th Jun 2005, 10:27
  #559 (permalink)
SEL

Join Date: Jan 2003
Location: North West
Posts: 121
Hi

You may already know this but there are a few in Helidata:

http://www.helidata.rotor.com/forsale.htm
SEL is offline
Old 20th Jun 2005, 11:20
  #560 (permalink)

Join Date: Nov 2004
Location: Alba
Posts: 63
You could always try here:
http://cgi.ebay.co.uk/ws/eBayISAPI.dll?ViewItem&item=8198854561&rd=1&sspagename=STRK% 3AMEWA%3AIT&rd=1


If you do buy a R44, I'll be happy to deliver it anywhere in the UK, for a small fee of course...

This seller also had a Raven for sale a couple of weeks ago, it might be worth sending them a mail.
UwantME2landWHERE! is offline
