Reason for/advantage of the ‘spade grip’ on the Spitfire and Hurricane

Military Aviation A forum for the professionals who fly military hardware. Also for the backroom boys and girls who support the flying and maintain the equipment, and without whom nothing would ever leave the ground. All armies, navies and air forces of the world equally welcome here.

Reason for/advantage of the ‘spade grip’ on the Spitfire and Hurricane

Old 8th Mar 2021, 06:08
  #1 (permalink)
Thread Starter

Join Date: Apr 2004
Location: Planet Earth
Posts: 1,958
Reason for/advantage of the ‘spade grip’ on the Spitfire and Hurricane

Curious as to why this design was adopted, seems to have only been used by aircraft designed in the UK

What did it do that a ‘regular’ joystick didn’t ?
stilton is offline
Old 8th Mar 2021, 06:13
  #2 (permalink)

Join Date: Feb 2006
Location: Hanging off the end of a thread
Posts: 20,435
I think (just assumption, I'd have to do a bit of research to validate this opinion.) that those grips were designed to allow 2-handed operation to overcome aerodynamic forces in the age of no hydraulics or low-pressure hydraulics during relatively high airspeed, high G dogfighting.
https://backcountrypilot.org/forum/w...l-sticks-18303

This reduced the need to hold your arm out so straight to fly which relieved some strain on long cross-country flights. The result of the stick being nearer the pilot necessitated the spade grip so that it could be held at a more relaxed angle and not require you to bend the wrist the wrist so much.
NutLoose is online now
Old 8th Mar 2021, 06:40
  #3 (permalink)

Join Date: Feb 2006
Location: Hanging off the end of a thread
Posts: 20,435
27
A control stick with a loop at the top was called a "Spade Stick". Generally only Hurricanes and Spitfires had them.

The cockpits on these aircraft were small and it was a problem for the control column to get full travel for roll control. This was solved by making the control column rotate at about mid-stick instead of from the the floor.

Other aircraft didn't use them because the cockpits were large enough to accommodate a normal stick and still provide good leverage and side to side travel.

The loop was there so a pilot could use both hands on the stick to get more lateral force since the effective length of the stick was now much less than a conventional floor mounted control stick.

Pilots found them to be much more comfortable to hold and loop style sticks did also get used some on larger aircraft with conventional floor mounted control sticks


.............
NutLoose is online now
Old 8th Mar 2021, 09:04
  #4 (permalink)

Join Date: Oct 2006
Location: UK
Posts: 5,216
I do't know if anybody else found this but I could never fly an aeroplane accurately with a vertical control stick left handed with the throttle in the right hand.
'Loop style' control columns with two hand grips working in the same way as a steering wheel I found easy and I could fly left or right handed to the same level.
Fareastdriver is offline
Old 8th Mar 2021, 09:41
  #5 (permalink)

Join Date: Oct 2009
Location: Old Hampshire
Age: 65
Posts: 601
A control stick with a loop at the top was called a "Spade Stick". Generally only Hurricanes and Spitfires had them.

The cockpits on these aircraft were small and it was a problem for the control column to get full travel for roll control. This was solved by making the control column rotate at about mid-stick instead of from the the floor.

Other aircraft didn't use them because the cockpits were large enough to accommodate a normal stick and still provide good leverage and side to side travel.

The loop was there so a pilot could use both hands on the stick to get more lateral force since the effective length of the stick was now much less than a conventional floor mounted control stick.

Pilots found them to be much more comfortable to hold and loop style sticks did also get used some on larger aircraft with conventional floor mounted control sticks

And then there are always exceptions to the rule. I present the GAL Hotspur Mk III glider. Triangular spade grip, full length column and no throttle to worry about. You've gotta love that flap leaver though.

VX275 is offline
Old 8th Mar 2021, 11:00
  #6 (permalink)

Join Date: Apr 2006
Location: uk
Posts: 907


And let's not forget that the aerodynamic masterpiece known as the Percival Prentice had a spade-type top to the (unarticulated) control column. Not quite in the same category as a Spitfire, of course, but not to be overlooked.

While the benefit was of limited value for violent air combat manoeuvres, it provided a handy place for the brake operating lever and PTT , and was probably marginally less strain on the arm in use while trundling along at 90 Kts for hour after hour, probably because the wrist angle was more natural, as someone said earlier.

So I felt quite at home in a 2-seater Spitfire last year; just a tad faster than the Prentice along with a few other differences, I admit, but at least the grip felt familiar.

Last edited by old,not bold; 8th Mar 2021 at 11:11.
old,not bold is offline
Old 8th Mar 2021, 11:17
  #7 (permalink)

Join Date: Jan 2008
Location: Glorious Devon
Posts: 303
Not to mention the SE5. See Aviation History and Nostalgia - What Cockpit? MkV post #2646
Ninthace is offline
Old 8th Mar 2021, 12:54
  #8 (permalink)

Join Date: Nov 2007
Location: Next to Ross and Demelza
Age: 50
Posts: 1,154
Not just Spitfires and Hurricanes either; just about every single seat British fighter from the Hawker Fury up to the last pistons featured a spade grip.
Martin the Martian is offline
Old 8th Mar 2021, 13:27
  #9 (permalink)

Join Date: Mar 2002
Location: near an airplane
Posts: 2,027
Didn't the RAF Harvards use a spade grip instead of the normal US stick grip?
Jhieminga is offline
Old 8th Mar 2021, 21:21
  #10 (permalink)

Join Date: Jul 2001
Location: Darwin, NT, Australia
Posts: 750
Sopwith Camels I've seen had a triangular spade grip. Seem to also recall Cecil Lewis mentioning a spade grip on a short control column in the Morane Parasol.
CoodaShooda is offline
Old 8th Mar 2021, 23:16
  #11 (permalink)

Join Date: Jul 2009
Location: Uranus
Posts: 876
I’ve flown a PZL Wilga and that had a spade grip. Last one off of the EADS production line about 15 years ago


The B Word is offline
Old 9th Mar 2021, 09:54
  #12 (permalink)

Join Date: May 2005
Location: QLD - where drivers are yet to realise that the left lane goes to their destination too.
Posts: 2,573
Supply contractor "The Hemorrhoids Warehouse (Warsaw Branch)" by any chance?
Traffic_Is_Er_Was is offline
Old 9th Mar 2021, 12:22
  #13 (permalink)

Join Date: Sep 2002
Location: Abeam YAYE
Posts: 307
Antipodean Spitfire

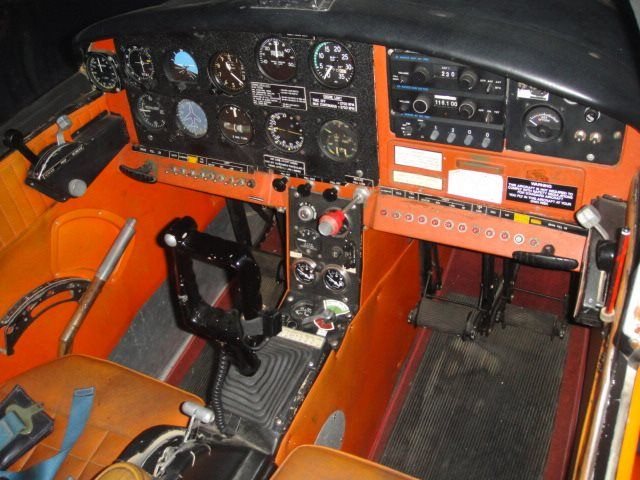

Let’s not forget the antipodean Spitfire, the mighty Victa Airtourer 100!

Located aft of the lawnmower-pull-to-start-handle and between the P1 and P2 seats, the Victa square-shaped spade grip (shovel?) allowed either the Captain or the First Officer to resume control in the event of an auto pilot malfunction.

(And it’s really quite a nice little aeroplane, on a cold day).
pithblot is offline
Old 9th Mar 2021, 14:19
  #14 (permalink)

Join Date: Jan 2014
Location: Lonan
Age: 71
Posts: 30
I manufactured some rocker gun buttons a few years back and mounted to a spade grip via a burnt Russian Hurricaine air valve assy. Two points struck me...the grip is suited to right handed pilots and I wonder if the casualty figures show a bias re lefties. The second is the pneumatic gun firing and attendant thick air hoses running up the column for the gun, this must have stiffened the control feel a tad. The rocker operated two schrader type air valves and were at the precision end for machining. Considering all that thick tubing running down the column, round the cockpit, and out to the gunbays, where one nick disarms the lot, why not electrical firing?
triskele is offline
Old 9th Mar 2021, 14:33
  #15 (permalink)

Join Date: Oct 1999
Location: South East.
Posts: 796
With reference to the Harvard query, both the marks that I have flown had a stick control column. Think Mustang and you'll be able to visualise exactly. Can't think of a more ergonomic and convenient conversion.......
Sleeve Wing is offline
Old 9th Mar 2021, 21:37
  #16 (permalink)

Join Date: Dec 2002
Location: UK
Posts: 2,163
Trigger or button to fire guns.

Older aircraft generally had higher stick forces, thus to fire the guns with a trigger it would be necessary to remove a finger from a stick. Three out of four fingers remaining could increase the relative control force, and decrease the accuracy of gunsight tracking. No electric trim.
Wheel hand-grip and gun firing button maximised available control force, two hands, fidelity / harmonisation of pitch / roll control.

Later aircraft had lower stick forces, servo/power controls, and elect trim; these aircraft favour a trigger on a hand grip, less control force required, and also enables additional switch functions - thumb trim switch, simultaneous camera finger button.
safetypee is offline
Old 9th Mar 2021, 22:24
  #17 (permalink)

Join Date: Dec 2009
Location: New Zealand
Posts: 365
Originally Posted by pithblot View Post
Let’s not forget the antipodean Spitfire, the mighty Victa Airtourer 100!

Located aft of the lawnmower-pull-to-start-handle and between the P1 and P2 seats, the Victa square-shaped spade grip (shovel?) allowed either the Captain or the First Officer to resume control in the event of an auto pilot malfunction.

(And it’s really quite a nice little aeroplane, on a cold day).



flyinkiwi is offline
Old 10th Mar 2021, 07:02
  #18 (permalink)

Join Date: May 2019
Location: Sydney
Posts: 118
Originally Posted by triskele View Post
...Considering all that thick tubing running down the column...why not electrical firing?
I don’t know about that. Have you ever experienced period Lucas electrics? If there was a rain cloud over the horizon, they’d find a way not to work.
JustinHeywood is offline
Old 10th Mar 2021, 09:32
  #19 (permalink)

Join Date: Jan 2008
Location: glasgow
Posts: 222
Originally Posted by JustinHeywood View Post
I don’t know about that. Have you ever experienced period Lucas electrics? If there was a rain cloud over the horizon, they’d find a way not to work.
I take exception to the inclusion of the word "period" in the above post! It implies that there are Lucas electrics which work when it rains.....
falcon900 is offline
Old 10th Mar 2021, 14:28
  #20 (permalink)

Join Date: Jan 2014
Location: Lonan
Age: 71
Posts: 30
Ah, Lucas...poor Beatrice Shilling hard at work and all the time it was the
l Lucas mag.
triskele is offline
