A380 engine piece found in Groenland after 9 months

Rumours & News Reporting Points that may affect our jobs or lives as professional pilots. Also, items that may be of interest to professional pilots.

A380 engine piece found in Groenland after 9 months

Old 2nd Jul 2019, 12:22
  #1 (permalink)
Thread Starter

Join Date: Jun 2009
Location: Paris, France
Age: 58
Posts: 47
A380 engine piece found in Groenland after 21 months

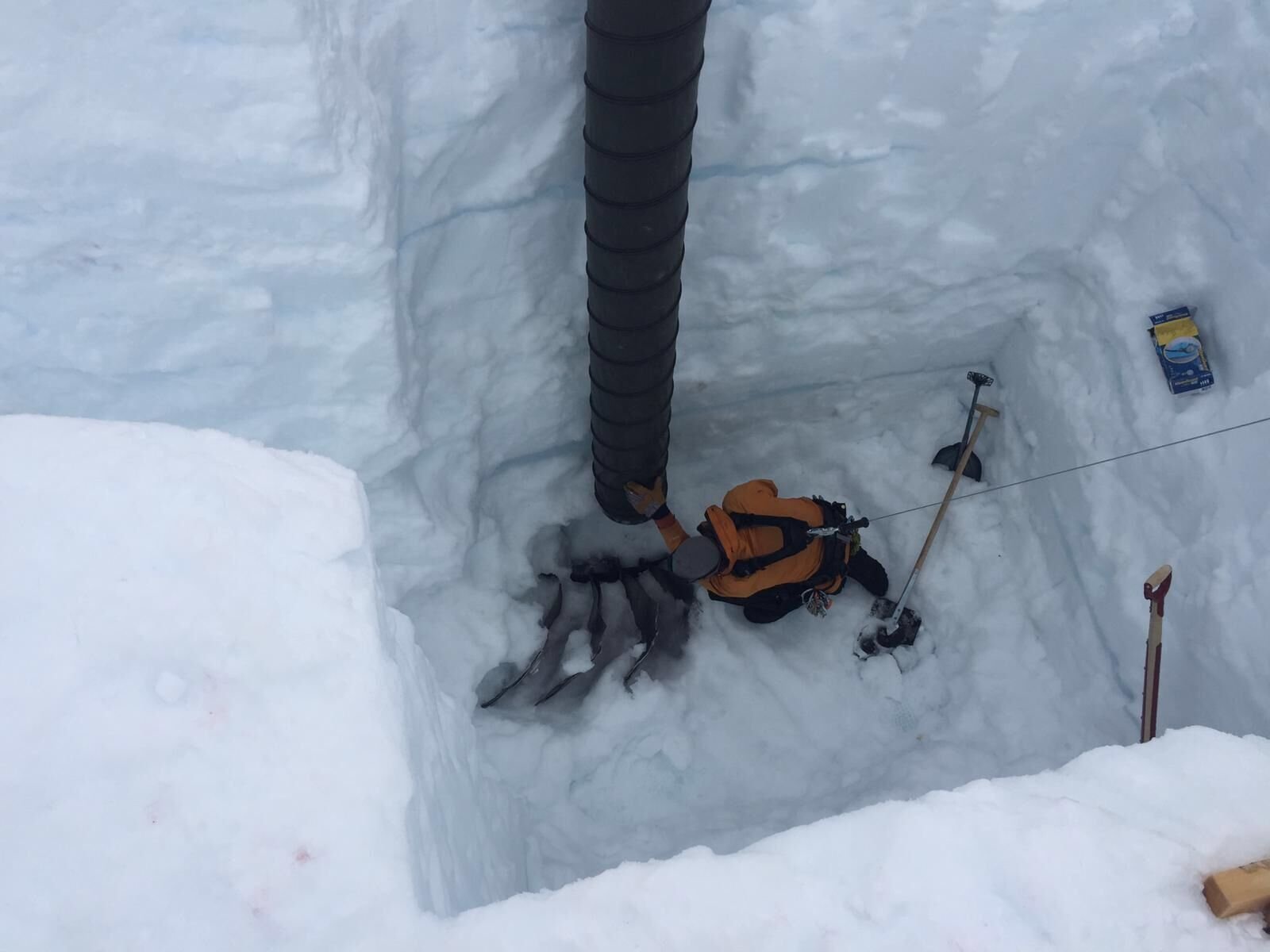

A 150 kg piece of the A380 engine 4 that experienced an uncontained engine failure over Groenland on 2017-09-30 was recovered under 4m of ice.
flightglobal's article
BEA's technical report (not yet updated)

Last edited by fgrieu; 2nd Jul 2019 at 16:28. Reason: Fix math in the title
fgrieu is offline
Old 2nd Jul 2019, 13:05
  #2 (permalink)

Join Date: Jun 2002
Location: Geneva, Switzerland
Age: 50
Posts: 1,423
Now that's really impressive.

I really wonder if it is worth the effort and expense. Is the BEA footing the bill? Sure it would be interesting to understand the circumstances of the failure but I was not expecting so much energy into it.
atakacs is offline
Old 2nd Jul 2019, 13:07
  #3 (permalink)

Join Date: Feb 2013
Location: 60 north
Age: 55
Posts: 3
Fantastic
Any details as to how they found it.
Magnetic anomaly equipment , maybe?
BluSdUp is offline
Old 2nd Jul 2019, 13:09
  #4 (permalink)

Join Date: Feb 2013
Location: 60 north
Age: 55
Posts: 3
Fair point.
Is this engine installed on any twin?
If so I for one would like a fix!
BluSdUp is offline
Old 2nd Jul 2019, 13:20
  #5 (permalink)

Join Date: Mar 2002
Location: EU
Posts: 572
I do hope it is the part they were looking for
golfyankeesierra is online now
Old 2nd Jul 2019, 13:20
  #6 (permalink)

Join Date: Apr 2001
Location: yes
Posts: 164
4 metres of ice since 2017? I thought it was all melting.
Steepclimb is offline
Old 2nd Jul 2019, 13:23
  #7 (permalink)

Join Date: Sep 2015
Location: UK
Posts: 85
Originally Posted by atakacs View Post
I really wonder if it is worth the effort and expense. Is the BEA footing the bill? Sure it would be interesting to understand the circumstances of the failure but I was not expecting so much energy into it.
The clue is in the second sentence of the report: "The BEA represents France, State of Operator, State of Registry and State of Design of the aircraft."
Politics...
EDIT: also striking when reading the report is how much use was made by BEA of Airbus resources and subsidiaries. Satellite imagery, ballistic calculations, even the plane carrying the synthetic aperture radar happened to be operated by an Airbus subsidiary.

Last edited by Joe_K; 2nd Jul 2019 at 14:03.
Joe_K is offline
Old 2nd Jul 2019, 13:24
  #8 (permalink)

Join Date: Mar 2002
Location: Florida
Posts: 5,157
Wow, nice looking fan blades
lomapaseo is online now
Old 2nd Jul 2019, 13:36
  #9 (permalink)

Join Date: Feb 2000
Location: 500 miles from Chaikhosi, Yogistan
Posts: 3,542
For various reason Airbus / BEA / GE really wanted this found.

They were doing magnetometer scans.
compressor stall is offline
Old 2nd Jul 2019, 14:01
  #10 (permalink)

Join Date: Jun 2016
Location: Stagnation Point
Posts: 29
It's closer to 21 months, not 9 months... now that's persistence!
Droop Snoot is offline
Old 2nd Jul 2019, 14:02
  #11 (permalink)

Join Date: Dec 2015
Location: Cape Town, ZA
Age: 58
Posts: 399
The story popped up on my newsfeed late yesterday, so I somehow thought it had already been linked on PPRuNe: https://www.flightglobal.com/news/ar...and-sn-459399/
BEA had recently disclosed that it was exploring various high-tech methods, including synthetic-aperture radar fitted to a Dassault Falcon 20 jet, in a bid to locate the parts.
GordonR_Cape is online now
Old 2nd Jul 2019, 14:38
  #12 (permalink)

Join Date: Jun 2011
Location: Paris
Posts: 8
Full story here (add https) eng.geus.dk/about/news/news-archive/2019/jul/missing-airplane-engine-part-found-by-geus-led-expeditions

Onera found magnetic anomalies from flights above the icepack, then danish picked it up.
I suppose the bill will be shared between GE/BEA/Airbus.
romiglups is offline
Old 2nd Jul 2019, 16:39
  #13 (permalink)

Join Date: Feb 2013
Location: 60 north
Age: 55
Posts: 3
Up to 12 meter per year, and melting.

Here in Norway we at times have 12 meters of annual snow fall measured on Svartisen and Ålfotbreen glaciers.
All but a few are shrinking , mind you.
Soooo!
Airbus and Engine supplier are using to much cash on finding fault.
Hmmm.
What a tragedy!!

Last edited by BluSdUp; 2nd Jul 2019 at 16:40. Reason: last sentance
BluSdUp is offline
Old 2nd Jul 2019, 18:04
  #14 (permalink)

Join Date: Mar 2019
Location: Farnborough Hants
Posts: 65
A 150kg piece of metal....... could they not have used similar technology to find MH370?
Paul Lupp is offline
Old 2nd Jul 2019, 18:19
  #15 (permalink)

Join Date: Jan 2008
Location: Reading, UK
Posts: 10,822
Originally Posted by Paul Lupp View Post
A 150kg piece of metal....... could they not have used similar technology to find MH370?
Not really comparable.

For one thing, the track of AF66 was known. the engine let go over land, and the parts were found under a few metres of snow, not several miles down in the ocean.
DaveReidUK is online now
Old 2nd Jul 2019, 18:20
  #16 (permalink)

Join Date: Jun 2002
Location: Geneva, Switzerland
Age: 50
Posts: 1,423
Originally Posted by Paul Lupp View Post
A 150kg piece of metal....... could they not have used similar technology to find MH370?
well in this case they had a very well defined search area over ground... Not even close with MH370.

Still I'm baffled by the scope of the effort.
atakacs is offline
Old 2nd Jul 2019, 18:30
  #17 (permalink)

Join Date: Aug 2003
Location: FR
Posts: 218
why the effort? maybe because this failure mode is not accounted for anywhere (thus perhaps counts as 1E-999) and possibly relevant beyond the A380 engine itself?
pax2908 is offline
Old 2nd Jul 2019, 18:50
  #18 (permalink)

Join Date: Nov 2015
Location: Paisley, Florida USA
Posts: 112
Originally Posted by atakacs View Post
Now that's really impressive.

I really wonder if it is worth the effort and expense. Is the BEA footing the bill? Sure it would be interesting to understand the circumstances of the failure but I was not expecting so much energy into it.
Most of you probably remember the crash of United Airlines Flight 232 in Sioux City, Iowa, USA on 19/07/1989. That crash was caused by the uncontained failure of the tail-mounted No.2 engine. This failure disabled all three hydraulic systems, resulting in the loss of all conventional controls, leaving control only by engine nos. 1 and 3 throttles. Key to determining the cause of the uncontained engine failure was examination of the fan disk, which unfortunately departed the aircraft at 37,000 ft. above the Iowa cornfields. The manufacturer of the engine (CF6-6), General Electric, offered a reward of $50,000 for finding the disk, and it was found in an Iowa cornfield some 3 months after the crash. Examination of the fractured disk revealed a metallurgical flaw which occurred during production; however, it was further determined that the cracks which consequently developed, should have been detected in the course of subsequent operational inspections.

So, in short, the finding of the fan disk of the A380 engine was well worth the effort and may lead to a clear understanding of the cause of the uncontained engine failure.

Cheers,
Grog
capngrog is offline
Old 2nd Jul 2019, 19:47
  #19 (permalink)

Join Date: Jun 2001
Location: Wherever someone will pay me to do fun stuff
Posts: 1,103
Originally Posted by atakacs
Still I'm baffled by the scope of the effort.
There's a reason that so much of the aviation is as safe as it is......
LookingForAJob is offline
Old 2nd Jul 2019, 22:48
  #20 (permalink)

Join Date: Jul 2013
Location: Everett, WA
Age: 64
Posts: 2,423
Originally Posted by compressor stall View Post
For various reason Airbus / BEA / GE really wanted this found.

They were doing magnetometer scans.
I would assume that since this was pretty clearly an engine failure, GE would be picking up the tab - if not all, at least the lions share. That's pretty standard procedure - when the cargo door blew out of the United 747 near Hawaii, Boeing spent a boatload of cash to find and recover the door so they could find out what went wrong and make sure it didn't happen again.

For design purposes, we assumed the probability of an uncontained engine failure (typically a rotor burst) at 10-8/hr, the current regulatory guidance requires a "one in twenty" analysis for rotor bursts - meaning the analysis needs to show that the probability of a rotor burst resulting in a catastrophic accident should be 5% or less.
However the engine company designs the rotors - especially the fan disc - to never fail. So, just like Sioux City, it's critically important to find out why it did fail so they can take appropriate action to prevent a future event.
BTW, IIRC, they traced the Sioux City fan disc failure to a flaw in the source material used to make the disc. There were nine other fan discs made from that same batch of material, which were promptly removed from service.
tdracer is offline
