Indonesian aircraft missing off Jakarta

Rumours & News Reporting Points that may affect our jobs or lives as professional pilots. Also, items that may be of interest to professional pilots.

Indonesian aircraft missing off Jakarta

Old 14th Nov 2018, 19:32
  #1221 (permalink)

Join Date: Feb 2017
Location: Isla Grande
Posts: 922
Originally Posted by gums View Post
Question rom a "light" pilot.

I am having a hard time with the procedure for runaway trim in the matter under discussion.

The AD and such indicate that manual trim using the switches on the yoke will work, but then the system runs the trim again unless the whole trim sytem is turned off. So if the stab is fully trimmed and the crew tuens off the trim, then all they have is basic elevator, right?

Jez asking...
Gums
Just pull out the handles inside wheel and trim it like a Cessna.
gearlever is offline
Old 14th Nov 2018, 19:33
  #1222 (permalink)

Join Date: Jul 2014
Location: Germany
Posts: 344
Originally Posted by gums View Post
Question rom a "light" pilot.

I am having a hard time with the procedure for runaway trim in the matter under discussion.

The AD and such indicate that manual trim using the switches on the yoke will work, but then the system runs the trim again unless the whole trim sytem is turned off. So if the stab is fully trimmed and the crew tuens off the trim, then all they have is basic elevator, right?

Jez asking...
Gums
Check the video posted a few posts above.
You can see the trim wheel in action. It can be turned by hand and even has a crank that is not used on the video (not sure why)
(This is the video in question https://tinyurl.com/ycah3ww)

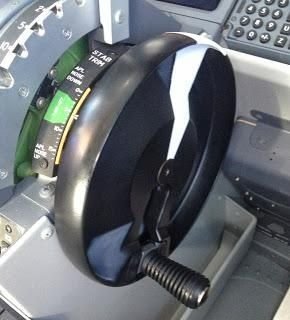

A picture of the trim wheel with handle extended:

Last edited by wiedehopf; 14th Nov 2018 at 20:25.
wiedehopf is offline
Old 14th Nov 2018, 20:35
  #1223 (permalink)

Join Date: Jul 2013
Location: Everett, WA
Age: 65
Posts: 2,825
Originally Posted by A Squared View Post
I don't know. I'm just saying that Boeing's words in the AD seems to indicate that moving the switches to "CUTOUT" is not a 100% guaranteed clean kill on stabilizer trimming. Why that is, or how it happens, I can only speculate. I have a hard time imagining designing a system that moves your flight control surfaces, and you can't turn off completely. Perhaps Boeing is alluding to the possibility that the contacts in a STAB TRIM switch become welded and don't open the circuit. I'm grasping at straws here.
There are several failures that can cause a stab trim runaway - and not all are solved by turning the system 'OFF". In addition to welded switch contacts, the motor can fail in such a way that you can't turn it off. These failures are rare, but not impossible - the only way to 100% disable the system is to pull the circuit breaker(s) (and that's not something they like to tell the pilots to do).
tdracer is offline
Old 14th Nov 2018, 20:59
  #1224 (permalink)

Join Date: Jun 2009
Location: florida
Age: 77
Posts: 1,214
Thanks TDracer and others,

My poor copy of the 737 manual is not all that clear about the mechanical connection of the trim wheel with the stab. Looks to me like it still uses some electrical thing and does not physically rotate the jackscrew or have gears and such. So a frozen/welded electrical component might result in frozen stab angle and all that it entails.

After all this great discussion, I have a feeling that the Rostov crash investigation may not be over. Go around, steep climb and decreasing speed, push over and then can't recover. That is the scariest video I have ever seen other than ......

I then place myself in the cockpit of this plane and short time after gear gear up we get the nose down upset and finally recover and continue on up to 5,000 feet. And then we have ten minutes of porpoising and I wonder if it was MCAS cycles and the main electric trim switches were still not turned off simply because every time the pilot stopped using the yoke switch the damned plane started nosing over again.

later, Gums wonders....
gums is offline
Old 14th Nov 2018, 22:05
  #1225 (permalink)

Join Date: Dec 2014
Location: Schiphol
Posts: 340
Hard to keep up gents. Wonder if this description has been posted before. Pity there is no source and date on it.

The MCAS (Maneuvering Characteristics Augmentation System) is implemented on the 737 MAX to enhance pitch characteristics with flaps UP and at elevated AOA. The MCAS function commands nose down stabilizer to enhance pitch characteristics during steep turns with elevated load factors, and during flaps up flight at airspeeds approaching stall.

MCAS is activated without pilot input and only operates in manual, flaps up flight. The system is designed to allow the flight crew to use column trim switch or stabilizer aislestand cutout switches to override MCAS input. The function is commanded by the Flight Control Computer using input data from sensors and other airplane systems.

The MCAS function becomes active when the AOA exceeds a threshold based on airspeed and altitude. Stabilizer incremental commands are limited to 2.5 deg's and are provided at a rate of 0.27 deg's per second. The magnitude of the stabilizer input is lower at high Mach number, and greater at low Mach numbers. The function is reset once the AOA falls below the AOA threshold, or if manual stabilizer commands are provided by the flight crew. If the original elevated AOA condition persists, the MCAS function commands another incremental stabilizer nose down command according to current aircraft Mach number at actuation.

A0283 is offline
Old 14th Nov 2018, 22:12
  #1226 (permalink)

Join Date: Mar 2014
Location: WA STATE
Age: 74
Posts: 1
RE GUMS 1233 cable/mechanical connection of trim wheel with styab ..
This SLF happend via google to find this link FWIW re 737 NG

https://www.slideshare.net/theoryce/...light-controls
Which in part says ( emphasis added )

  • 4. Fully powered rudder Hydraulic systems A-B and Stby. No tab Power assisted Elevators Hydraulic systems A and B Manual reversion Aerodynamic balance tab. Power assisted Ailerons. Hydraulic systems A and B. Manual reversion Aerodynamic balance tab. Primary Flight Controls
  • 5. Movable horizontal stabiliser powered by an electric motor for manual trim or by the Autopilot. Manual via cables from the trim wheels in the cockpit. Four flight spoilers on each wing symmetrical pairs powered by hydraulic systems A and B Secondary Flight Controls Inboard and outboard double slotted T.E Flaps Normally Hydraulic system B Alternate Electric motor Outboard and Inboard spoilers Ground only Hydraulic system A 4 slats on each wing . Hydraulic system B Normal Standby Hydraulic Alternate 2 Krueger flaps On each wing inboard of the engines move with the slats

Last edited by CONSO; 14th Nov 2018 at 22:15. Reason: make quote visible re red-otherwise print is white
CONSO is offline
Old 14th Nov 2018, 22:34
  #1227 (permalink)

Join Date: May 2011
Location: Bermuda Triangle
Posts: 64
I wonder why they did not make a 757 MAX instead of a 737. The 737 has lots of flaws and the MAX label has not changed anything. I don't remember any flaws on the 757.
svhar is offline
Old 14th Nov 2018, 22:35
  #1228 (permalink)

Join Date: Feb 2015
Location: Gold Coast, QLD, Australia
Posts: 21
Was MCAS certified?

Non-flyer here, sticking my neck out.

I note that tdracer and DaveReidUK provided clout about certification methodology in recent posts.

My source docs,
* B737 TC - an FAA doc actually named “Type Certificate Data Sheet A16WE” (page with link originally provided by Gysbreght in post #1187)
* Section 25.672 of Part 25 Airworthiness Standards (FAA)

Firstly, note that the B737 MAX-8 and -9 have both been methodically added to the B737 TC, as shown on the current B737 Type Certificate Data Sheet. Application for MAX-8 certification was first put to the FAA in June, 2012; design was finalized mid 2013; and its specific TC was issued in March 2017, (10 weeks before being flown by the first operator). In doing so, these new MAX a/c append in time sequence to a long list of all previous 737 variants that the TC Data Sheet covers. There are 2 more of the 737 MAX family to come yet.

So, digging into the TC, towards the end where 737-8 and 737-9 certification is summarized. On page 74 of the doc we find that in the CONTROL SYSTEMS section, the included item Part 25.672 Stability Augmentation and Automatic and Power-Operated Systems (an FAA named item) gets its first and only mention. This in a certification data sheet which includes every model since the very first 737, so logically the item applies only to the MAX-8 and -9. Apparently none of the prior B737 variants were certified for this.

Is it too much to conclude that this is MCAS first seeing the regulatory light of day?

If so, in the second source doc above, the FAA sets out the regulatory requirements for systems having this class of functionality. If Boeing had the MCAS in mind in citing this section for certification, there may be some pertinent questions to be answered.
SLFstu is offline
Old 14th Nov 2018, 22:37
  #1229 (permalink)

Join Date: Jul 2013
Location: Everett, WA
Age: 65
Posts: 2,825
Originally Posted by DaveReidUK View Post
The 737 MAX 8 was certificated (as the "737-8") in Revision 58 of the Boeing 737 Type Certificate (A44WE) on 8th March 2017.

While there are indeed a handful of STCs (16 in fact) that are applicable to the MAX 8, they do not form part of the TC.
Yes. I stand corrected - I'm going to claim a senior moment Mulligan . I was using the term STC in that post, I should have been using ATC (Amended Type Cert) - STC is different (although related). I'll edit it accordingly to avoid the most serious confusion.
tdracer is offline
Old 14th Nov 2018, 22:54
  #1230 (permalink)
Thread Starter

Join Date: Jul 2013
Location: In a Pineapple Under the Sea
Age: 58
Posts: 101
Originally Posted by gums View Post
Question rom a "light" pilot.

I am having a hard time with the procedure for runaway trim in the matter under discussion.

The AD and such indicate that manual trim using the switches on the yoke will work, but then the system runs the trim again unless the whole trim sytem is turned off. So if the stab is fully trimmed and the crew tuens off the trim, then all they have is basic elevator, right?

Jez asking...
Gums
Here ya go . . . all you wanted to know about spinning wheels . . .

Watch Videos Online Aircraft trim system, 737-200 Veoh.com
WillFlyForCheese is offline
Old 14th Nov 2018, 23:00
  #1231 (permalink)

Join Date: Nov 2018
Location: Canada
Posts: 15
Originally Posted by SLFstu View Post

Firstly, note that the B737 MAX-8 and -9 have both been methodically added to the B737 TC, as shown on the current B737 Type Certificate Data Sheet. Application for MAX-8 certification was first put to the FAA in June, 2012; design was finalized mid 2013; and its specific TC was issued in March 2017, (10 weeks before being flown by the first operator). In doing so, these new MAX a/c append in time sequence to a long list of all previous 737 variants that the TC Data Sheet covers. There are 2 more of the 737 MAX family to come yet.

So, digging into the TC, towards the end where 737-8 and 737-9 certification is summarized. On page 74 of the doc we find that in the CONTROL SYSTEMS section, the included item Part 25.672 Stability Augmentation and Automatic and Power-Operated Systems (an FAA named item) gets its first and only mention. This in a certification data sheet which includes every model since the very first 737, so logically the item applies only to the MAX-8 and -9. Apparently none of the prior B737 variants were certified for this.

Is it too much to conclude that this is MCAS first seeing the regulatory light of day?

If so, in the second source doc above, the FAA sets out the regulatory requirements for systems having this class of functionality. If Boeing had the MCAS in mind in citing this section for certification, there may be some pertinent questions to be answered.
Good find

I just read through section 25.672, if MCAS falls under this section, Boeing is in deep trouble. MCAS fails every.single.clause in this section! There wouldn't be simple fix...
LDRA is offline
Old 14th Nov 2018, 23:14
  #1232 (permalink)

Join Date: Aug 2006
Location: Looking for the signals square at LHR
Posts: 203
Smile

Originally Posted by DaveReidUK View Post
That's true, though of course most wings, being cambered, do still produce some lift at 0° AoA.
Actually, depending upon design, a wing can produce a lot of lift at 0deg AoA, certainly more than AoA alone with a conventional wing profile. But I thought we had agreed to leave Bernoulli out of it!
Gipsy Queen is offline
Old 14th Nov 2018, 23:37
  #1233 (permalink)

Join Date: Jan 2014
Location: Melbourne
Age: 64
Posts: 284
It has been noted by others that differences training from B737-800 to B737-8 does not require emphasis on the MCAS.Boeing wants to keep it simple. If you get a hold of the Runaway Stabilizer Non Normal Checklist you can see why.If correctly followed it CAN resolve the issue. But like all non-normals it requires a well trained Pilot and the correct response to the condition. Having personally experienced an Airspeed Unreliable event in-flight I can only say that the startle factor is massive.Simultaneous stall and overspeed warnings is a challenge to say the least. You dont have long to make the right call.Same for runaway stab.Still the most likely cause is incorrect response to the condition.Having said that I have great sympathy for the crew.Very easy to play monday morning quarterback.Why the aircraft was cleared to line after 3 sectors with a know problems is another question.
George Glass is offline
Old 14th Nov 2018, 23:44
  #1234 (permalink)

Join Date: Mar 2002
Location: Seat 0A
Posts: 7,996
Originally Posted by Gums
So if the stab is fully trimmed and the crew tuens off the trim, then all they have is basic elevator, right?
You can trim it by manually turning the trim wheel.

Originally Posted by George
Having personally experienced an Airspeed Unreliable event in-flight I can only say that the startle factor is massive.Simultaneous stall and overspeed warnings is a challenge to say the least.
And then you're supposed to notice the trim quietly winding itself full nose down...

It should be one or the other. As mentioned previously, if there is a chance that the trim will runaway during a Unreliable Airspeed scenario, then "Stab Trim OFF" must be one of the memory items.
Capn Bloggs is offline
Old 14th Nov 2018, 23:49
  #1235 (permalink)
Psychophysiological entity

Join Date: Jun 2001
Location: Tweet Rob_Benham Famous author. Well, slightly famous.
Age: 80
Posts: 4,863
CONSO's link has an interesting item on page 52. (Quick access via strip on top edge of black bar.)

Cam switches under the flight-deck floor disable the trim when the control column is moved in the opposite direction to the stabilizer trim direction. I'd struggling to cope with the technical issues, but if this has been mentioned, I missed it.

https://www.slideshare.net/theoryce/...light-controls
Loose rivets is offline
Old 14th Nov 2018, 23:59
  #1236 (permalink)

Join Date: Jul 2003
Location: In da Big Smoke
Posts: 2,461
If correctly followed it CAN resolve the issue. But like all non-normals it requires a well trained Pilot and the correct response to the condition.
Additional to this you need to identify the problem. I could imagine this being quite a difficult task if you had unreliable airspeed announciations additional to stick shakers going off, even hearing the trim running may not be possible. The only way to confirm would be to look down but not sure who would be doing that when you are under the impression the aircraft is stalled.
neville_nobody is offline
Old 15th Nov 2018, 00:10
  #1237 (permalink)

Join Date: Sep 2018
Location: Laredo, TX
Posts: 121
Originally Posted by WillFlyForCheese View Post
Here ya go . . . all you wanted to know about spinning wheels . . .

I can't post the OP's video
That mechanical stab trim brake system was changed to some type of column activated electrical cutout system some time in the later models. The brake release knob on aft pedestal normally used to secure the garbage bag on the 727 and, I guess the 737, was replaced by a switch to override the stab trim cutout system. If the Max still has the latest cutout system they must have made a bypass around it for the MCAS. When I was a 727 plumber we checked the brake, as seen on the video, on first flight of the day. 737 drivers please chime in on whether this system is checked/installed on your aircraft.
jimtx is offline
Old 15th Nov 2018, 00:21
  #1238 (permalink)

Join Date: Mar 2005
Location: N/A
Posts: 3,278
Article on AVweb. Closing para,
I don’t often speculate on such things but if I were a betting man—and I’ve been known to dabble at the tables—my bet is that the accident investigation will once again revisit a familiar theme: automation bias. In the name of safety shaped by consistent procedures driven by automation in the cockpit, pilots are increasingly losing their basic feel for putting hands on controls and throttles and actually flying a flyable airplane. A second focus will be the utter perversity of how pilots now have to be trained to keep the automation that’s supposed to help them from killing them instead.
https://www.avweb.com/eletter/archiv...4190-full.html
megan is offline
Old 15th Nov 2018, 00:37
  #1239 (permalink)

Join Date: Mar 2015
Location: North by Northwest
Posts: 473
There are a number of questions surrounding the certification process which as far as I can tell revolve around what documentation and/or training of a 'new' flight control automation capability was not documented to airlines let alone crew by the manufacturer. But, do we even know;
1) If the sensor was faulty or was there a problem further down the line, AoA sensor was replaced (1 or 2 sensors depending upon source cited) and it either didn't fix one "symptom" (airspeed disagree) or make matters a whole lot worse, but still allowed the next segment to complete, albeit more harrowing then the prior 2 segments (that may have been pilot skill - refer back to Golden Rivit's post #956 and listen to Capt VanderBurgh's last 10 minutes, including China Airlines 140 and the Delta L-1011 San Diego incident? Ok you can argue whether the unfortunate toga press caused 140, but I'd suggest that happened because of stab trim gone rogue.)
2) Was the correct part installed correctly?

Interesting read on why MCAS allegedly was created for the MAX - https://theaircurrent.com/aviation-s...em-mcas-jt610/. Take it for what it is worth as the site content was written by a media type.
b1lanc is offline
Old 15th Nov 2018, 00:56
  #1240 (permalink)

Join Date: Dec 2007
Location: Denver, Colorado, USA
Posts: 151
Originally Posted by DaveReidUK View Post
The 737 MAX 8 was certificated (as the "737-8") in Revision 58 of the Boeing 737 Type Certificate (A44WE) on 8th March 2017.
I'm confused, A44WE is not the FAA TCDS, comes up as not a valid number, A16WE is, or at least per the FAA RGL.EASA number?
14 CFR 25.672 came out with Amdt. 25-23, Eff. 5/8/70, so it shows up (somewhat) in Type Certification Basis, (737-300 Series Airplanes), Type Certification Basis, (737-400 and 737-500 Series Airplanes),
*Applicable only to new or major modified structure or to new systems and components unique to the 737-400, and 737-500 series airplane with respect to the existing Model 737-200 Series airplane.
737-600, -700, -800 (Cont’d.) Certification Basis: A. 14 CFR Part 25 of the Federal Aviation Regulations as amended by Amendments 25-1 through 25-77 with the exceptions listed below
So for those aircraft it is a valid rule
mnttech is offline
