4th Aug 2018 Junkers JU52 crashed in Switzerland

Rumours & News Reporting Points that may affect our jobs or lives as professional pilots. Also, items that may be of interest to professional pilots.

4th Aug 2018 Junkers JU52 crashed in Switzerland

Old 7th Aug 2018, 15:26
  #141 (permalink)

Join Date: Aug 2008
Location: NW England
Posts: 72
At a high density altitude the relatively higher TAS would get you into a pickle more quickly in a box canyon than at lower altitudes.

At 1000ft AMSL 60kts IAS is 61kts TAS but at 10000ft AMSL it's 72kts TAS.

Would it be enough to make the difference and force a higher turn rate to avoid terrain, edging towards the stall in clean configuration?
Hadley Rille is offline
Old 7th Aug 2018, 15:34
  #142 (permalink)

Join Date: Jul 2009
Location: Down on Earth
Posts: 4
On the site of the webcam of Mutta Rodunda (just google it) cable car station you can have a look at the possible crash site if you go back in time 2018-08-04 to 16:40 and 17:00. Below the half-moon shape snow field you see nothing at 16:40, but possibly the JU52 at 17:00. The weather looks not too bad.
I would post the pictures, but I am not allowed to do so yet (less than 10 posts)
Walking Bird is offline
Old 7th Aug 2018, 15:45
  #143 (permalink)

Join Date: Oct 2007
Location: Here
Posts: 576
The "not so smokey" ju-52 is to the north west side of Piz Sengas

Thanks to various pointers to this location from poster(s).

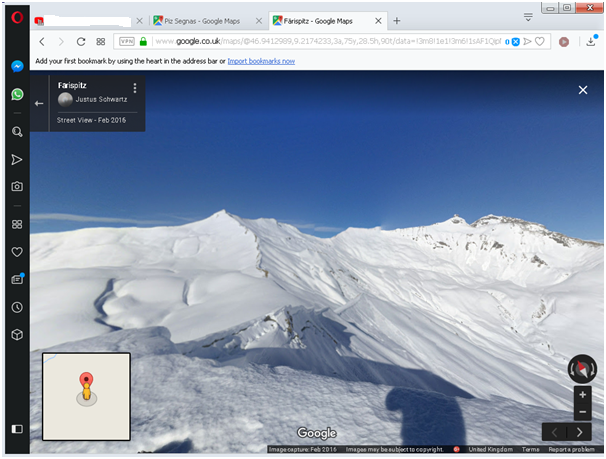

From the Streetview viewpoint at this location you get the "grass/smoke" view of Piz Segnas.

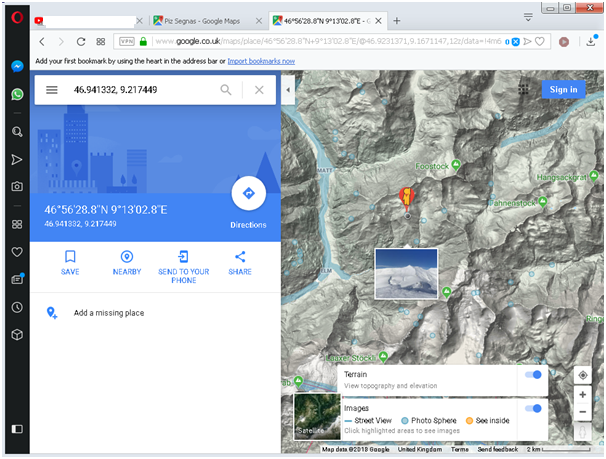

https://goo.gl/maps/i2JBbsA3PtC2




Drag the yellow man towards the point.


Drop the Yellow man's circle over the blue circle at the point.


Pan right to about 155 degrees and zoom in to get the image below


Last edited by jimjim1; 7th Aug 2018 at 16:27.
jimjim1 is offline
Old 7th Aug 2018, 16:48
  #144 (permalink)

Join Date: Apr 2017
Location: England
Posts: 68
Originally Posted by Walking Bird View Post
On the site of the webcam of Mutta Rodunda (just google it) cable car station you can have a look at the possible crash site if you go back in time 2018-08-04 to 16:40 and 17:00. Below the half-moon shape snow field you see nothing at 16:40, but possibly the JU52 at 17:00. The weather looks not too bad.
I would post the pictures, but I am not allowed to do so yet (less than 10 posts)
This what you meant?


16.40:


17.00:


Closeup of object, 17.00:



Can't get the resolution any better than that.
PaxBritannica is offline
Old 7th Aug 2018, 17:38
  #145 (permalink)

Join Date: Jan 2008
Location: Denver
Posts: 914
Just to put another cat among the pigeons, Aviation Herald is now quoting "a military pilot" who says he saw the same aircraft, 10 minutes prior to the accident, make a similar left turn that "suddenly" developed into a severe roll and dive, but recovered with high power.

Make of that what you will: Crash: Ju-Air JU52 at Piz Segnas on Aug 4th 2018, impacted terrain
pattern_is_full is offline
Old 7th Aug 2018, 18:20
  #146 (permalink)

Join Date: Oct 2017
Location: Vienna
Posts: 73
How about shifted COG which would cause the high pitch we see in the “smoke” photo and subsequential stall?

Could be as simple as too many people moving aft to see the view or whatever...
derjodel is offline
Old 7th Aug 2018, 18:29
  #147 (permalink)
AlterSchwede
Guest

Posts: n/a
...PaxBritannica, I was about posting the same pictures (looking noth-north-east). Yes, sadly, it clearly shows where the Ju-52 ended. The 16.50 pictures shows shadow over the area so these two, at 16.40 and 17.00 are the clearest ones. With different infos so far available I agree with some other comments here, it was most probably a stall (left wing) accident. (My personal opinion!)
The distance between the mountain ridges is about 900m. In the left ridge we have the Martinsloch (round opening in the mountain). According to other info, ISA was around 17 degree over standard atmosphere. The wind (max almost 20 knots according other info) was from the north (from behind the ridge on the left side).
Now we have to options:
-1) the pilots on the way home, heading north, wanted to fly straight over the ridge (at the lowest point) , but realized that the performance was not good enough, so they were forced to turn back to the south...
or:
-2) the pilots first wanted to show the Martinsloch, flying north-north-east along the right mountainslope followed by a left turn back to the south.

- Considering the fully loaded aircraft, and high ISA +17, the TAS would be greater than at STD atmosphere resulting in a greater turning radius, and... to keep inside the valley they MAYBE had to increase the bank angle.
- At 45° bank the stall speed increase with 20% (1.4G). They most probably used max continues power. What speed? 120 knots? Or even slower (in case 2) due to terrain?
- The north wind, maybe gusting and turbulent, becoming a tailwind component during the last part of the 180 degree turn. It is not hard to imagine that they had small margins, not only scanning the instruments but also to look outside to keep clear of terrain.
I am also wondering, how is the Ju-52 accelerated stall behaviour? With max continues power, in a 30° (or 45°) bank? Probably not so nice. And how is the spiral stability, and what aileron position is required to keep a steady turn? Neutral? All factors influencing such a situation.

Old 7th Aug 2018, 18:41
  #148 (permalink)

Join Date: Oct 2011
Location: NV USA
Posts: 182
Originally Posted by pattern_is_full View Post
Just to put another cat among the pigeons, Aviation Herald is now quoting "a military pilot" who says he saw the same aircraft, 10 minutes prior to the accident, make a similar left turn that "suddenly" developed into a severe roll and dive, but recovered with high power.

Make of that what you will: Crash: Ju-Air JU52 at Piz Segnas on Aug 4th 2018, impacted terrain
Yes I read that, sounds like a propeller problem, overspeed or loss of prop control.
The "high power" sound may have been the prop overspeeding and causing severe drag on the left engine.
Pure speculation on my part of course.
cappt is offline
Old 7th Aug 2018, 20:05
  #149 (permalink)

Join Date: Jul 2016
Location: Broughton, UK
Posts: 42
From a different angle..

https://goo.gl/maps/kyUxtFNtWS12
scifi is offline
Old 7th Aug 2018, 20:06
  #150 (permalink)

Join Date: Jun 2009
Location: Switzerland
Age: 35
Posts: 56
Originally Posted by cappt View Post


Yes I read that, sounds like a propeller problem, overspeed or loss of prop control.
The "high power" sound may have been the prop overspeeding and causing severe drag on the left engine.
Pure speculation on my part of course.
in the online newspaper Blick you can see the last picture of the Ju-52 in a left turn.

https://www.blick.ch/news/schweiz/au...id8700276.html

spoon84 is offline
Old 7th Aug 2018, 20:27
  #151 (permalink)

Join Date: Jun 2002
Location: Geneva, Switzerland
Age: 49
Posts: 1,265
Originally Posted by spoon84 View Post
in the online newspaper Blick you can see the last picture of the Ju-52 in a left turn.
Assuming it is authentic I guess it closes the argument about smoke / vapour or whatever emanating from the aircraft.
Also as far as we can judge from that picture the overall attitude seems about normal. We do get an idea of the terrain below, definitely not smooth but certainly somewhere you could try an emergency landing with such an aircraft in case of a catastrophic engine failure.
Now we have to understand why they apparently completely lost control. I remain perplexed.
atakacs is offline
Old 7th Aug 2018, 20:34
  #152 (permalink)

Join Date: Jun 2002
Location: east ESSEX
Posts: 3,027
Can also see it`s shadow near the bottom..
sycamore is offline
Old 7th Aug 2018, 22:12
  #153 (permalink)

Join Date: Sep 2001
Location: Toronto
Posts: 2,184
Upwind or Downwind of the Ridge?

Upwind would be in updraft.

Downwind could be downdraft and nasty rotors.

Much depends on wind direction relative to terrain, strength and shears. You could be flying in a particular area for years without problems – and one day you get nailed.
RatherBeFlying is offline
Old 7th Aug 2018, 23:04
  #154 (permalink)

Join Date: Jan 2008
Location: Herts, UK
Posts: 724
You could be flying in a particular area for years without problems – and one day you get nailed.
Exactly true... you don't get downwind of a sharp ridge without expecting the unexpected
HarryMann is offline
Old 8th Aug 2018, 00:02
  #155 (permalink)

Join Date: Oct 2011
Location: NV USA
Posts: 182
In the last Blick picture which looks to taken just seconds before the crash the JU52 appears to turning to the North into the wind and toward the headwall of the canyon. The torn white lower cumulus clouds behind it look like rotor clouds. Rotor clouds are a good indication of turbulence and mountain wave associated with wind across the mountain tops.
cappt is offline
Old 8th Aug 2018, 05:00
  #156 (permalink)
sir
Basia Arma

Join Date: Apr 2001
Location: button moon
Posts: 43
Originally Posted by spoon84 View Post
in the online newspaper Blick you can see the last picture of the Ju-52 in a left turn.

https://www.blick.ch/news/schweiz/au...id8700276.html

That mountain behind the aircraft is the Atlas. The band of cliffs spans from about 2700m to 2800m elevation. This shows the aircraft was flying up the eastern side of the valley, and the left turn would line them up with the Segnes Pass, of which the lowest point is 2625m rising to 2742m either side. On the webcam photos you see the pass as the lowest part of the ridge on the left side, and you can also see Atlas on the right.

Good map of the area
sir is offline
Old 8th Aug 2018, 07:54
  #157 (permalink)

Join Date: Jun 2002
Location: Geneva, Switzerland
Age: 49
Posts: 1,265
My question would be how much reserve performance could they have flying there with a compliment of 20 passengers on a hot day. Apparently we have a few posters with actual JU52 experience. I would be very interested in their "real liffe" " findings.
atakacs is offline
Old 8th Aug 2018, 08:34
  #158 (permalink)
Pegase Driver

Join Date: May 1997
Location: Europe
Age: 69
Posts: 2,564
A rumor in the hangars speaks about Carbon monoxide .But difficult to say if this another wild speculation or based on leaks on the first forensic tests..
I tend to go for the first option but maybe someone has more info as to where this rumor comes from .
ATC Watcher is offline
Old 8th Aug 2018, 10:33
  #159 (permalink)

Join Date: Jul 2009
Location: Down on Earth
Posts: 4
Smile

Originally Posted by PaxBritannica View Post
This what you meant?

Closeup of object, 17.00:

Can't get the resolution any better than that.
Yes, exactly. This view is apparently from south in the direction of the ridge. Distance approximately 5km.
Walking Bird is offline
Old 8th Aug 2018, 11:30
  #160 (permalink)

Join Date: Apr 2007
Location: EU
Posts: 27
Originally Posted by PaxBritannica View Post
This what you meant?
Can't get the resolution any better than that.
I got the highest resolution possible, enhanced the shadows and compared the images. My result: No Ju visible in the 16:50 photo and wreck visible in the 17:00 photo. Which more or less means that we unfortunately cannot get anymore information form the webcam images.

Maybe the operator has access to more archive images. Just to be sure, I notified them...
DRDR is offline
