Im sorry but im making a valid well educated analysis here but no one is able to understand it because its a bit complicated for me to put in text.

Yes, Mast bumping is typically a thing which happens under power, so is typically, severe at the top of the mast.
But this was not under normal power situation, as torque was lost due to an entire drivetrain component missing.
There have atually been quite a substantial number of number of military related incidents where the bumping has lead to cracked transmission cases.
But for commercial examples, N6181A, September 16 September 12, 2016 - mast bumping event on ground
"The inspector performed a limited inspection and noted substantial damage sustained to the main rotor mast and to the transmission system."

Now im sorry to offend anyone, my posts are meant to be informative. Is there any chance I can maintain an ounce of respect on here ? I resepct everyone else, why is there none available for me?

Jeremy. this is a very qualified and experienced group, you gotta really know your stuff to make a good impression here. For myself, particularly on this forum, I often read and consider more, and post less, and only what I know first hand from having done it/lived through it!

What is an "Access Mask"?

Hi Jeremy. In your recent posts, I can sort if follow some of your logic. I might come back to that later. But here is one for you and others to consider in the meantime:

First, I assume by "tail rotor drive shaft bonds" you mean that a coupling between the tail rotor drive shaft elements failed?

The footage of the helicopter emerging from behind the building appears to me to show the fuselage yawing anticlockwise as viewed from above [update: I can now see the clockwise yaw others had indicated]. The tail boom might initially also start yawing in that direction but then seems to fold back as if resisting the sudden yaw by its own inertia and aerodynamic loads. If there was a loss of tail rotor drive, then the fuselage should start yawing clockwise viewed from above (until pilot reacts and reduces collective and power) [update: which again is the direction of yaw most posters here were seeing, and I now can as well] .

I realise different people might perceive the direction of yaw in opposite directions [update: I have changed my perception over time].

You also associate the audio sound with a tail rotor shaft thrashing around. But the frequency has been associated by others with main rotor RPM. The tail rotor and tail rotor drive RPM is much higher so I would expect a higher frequency if that was the cause of the sound?

But, you’re not, that’s why you are getting the comments you are. Ignoring the mast bumping, your entire analysis of the consequences of a TR drive failure is nonsense. You make comments about “zero torque”, “nothing for the engine to drive”, and “the rotor slowing down” etc. all of which are totally incorrect.

If you go back to basics, how many times has this happened in previous TR drive failure incidents in the past? I doubt anyone here has heard of one and, frankly, if this was the logical outcome, of a failure type that has a relatively high risk of occurring, I’m sure many here will have stopped flying sooner!

Related to the topic, I found an interesting video diary showing a brief glimpse of this kind of operation. This one follows a flight to and from Newark (it uses part of the same flightpath and you can see the now-famous NJ riverside buildings from the aerial perspective). The accident aircraft even makes a cameo. I think it might be the same operator, perhaps a sister aircraft.

First of all, is it fair to assume the two broken tubes emerging from within the tail boom are the tail rotor pitch control and the elevator control links?

Then a few more observations about the tail rotor drive shaft as seen in the NTSB B-roll. Will start by including a layout drawing of a 206L-3 from a Bell brochure (the L-3 is presumably mostly similar to the L-4):
https://cimg1.ibsrv.net/gimg/pprune....1618245d9f.jpg
Next, a pair of views near the fractured tail boom but also looking forward to what I understand from Kulwin Park (#139) is the Oil Cooler Fan (dark green). A spline end of a portion of tail rotor drive shaft is visible where marked by arrows, with support bearing still intact at that location:
https://cimg5.ibsrv.net/gimg/pprune....8ff4b16a5c.jpg
https://cimg6.ibsrv.net/gimg/pprune....69c435a0e4.jpg

Then, as Kulwin Park noted in #139, a seemingly fractured section of tail rotor drive shaft further forward below the engine (see again arrow):
https://cimg3.ibsrv.net/gimg/pprune....08b4f976a9.jpg
Finally, to complement the screen shot of tail boom fracture already posted by JamesT73J, another view looking from directly behind. A portion of the tail boom skin hangs out on the right side of the fracture (white being the interior colour of the tail boom at this location):
https://cimg6.ibsrv.net/gimg/pprune....21253c9e61.jpg
It isn't obvious to me the fracture of the tail boom is due to a drive shaft flailing about given the bearing seat near that fracture isn't massively distorted. It also doesn't seem the fracture at this location relates directly to a main rotor strike as that would likely have occurred further aft. So can anything be drawn from the remnants of the tail rotor drive? My guess is the TR drive fracture below the engine may have occurred when the fuselage impacted the water (which seemed to be mostly inverted). Drive shaft may have been pulled apart at spline aft of oil cooler fan when the tail boom folded as seen in video?

I was curious to see the animation(?) one of the investigators showed Jennifer Homendy on their laptop at 5:43+. The rotor hub looked more like a Bo105 or BK117. Gives me a sense they were trying to illustrate the way in which cyclic pitch control of blades operates rather than something specific to 206L. In turn, I am still left wondering if perhaps a pitch control link gave way? A single 'out of control' blade would certainly generate a noise consistent with 1 per rev of the main rotor system as Juan Browne is indicating in one of his video clips. Not sure what the sound of a blade driven to a large AoA might sound like* but the drag on such a blade would cause rotor to loose its RPM even with turbine still driving it. That is consistent with the frequency of the noise in the video reducing over time. But rotor drag should then have caused the fuselage to yaw clockwise which is opposite to what I perceive from the video footage.

* Audio of footage of the EC130B4 VH-XH9 landing following its collision with EC130B4 VH-XKQ on Gold Coast of Australia in 2023 revealed a distinct 'swoosh' sound, perhaps matching rotor RPM. I now suspect that was due to what the final report reveals was a partly delaminated blade on XH9.

The video shows the tailboom, once separated, passing through the main rotor, before it too separated, and disintegrating.

Not sure myself, but a certain Jeremy Thompson is going to find out if he doesn’t take heed of the gentle advice from the powers that be!

Access to a Forum is Masked, ie not allowed.

Now duly applied as warned to our accident junkie, who can no longer access Rotorheads thus saving us Professional Pilots bandwidth, time and patience.

No. Blade is a different operator than the accident aircraft.

Yes. The larger diameter one is to the elevator.

Yes. But in general the L-4 has a different MR/TR drive system and higher gross weight.

Yes. But its technically called the oil cooler blower. The splines are part of the blower which is also called the #2 TR shaft.

That is the #1 TR driveshaft and it appears to be sheared near the middle of the shaft. Given the engine was torn loose seems plausible it would break there since the blower is still intact which would be where that #1 shaft connected to.

Except if the aft end of the #4 TR shaft came lose or failed it would have hit the t/boom in the area of where the t/boom tore off. Plus the remains of the #4 shaft hanger bearing can still be seen in its deformed mount on the forward edge of the installed t/boom portion.

The #3 TR shaft only slides onto the aft blower splines as does the #1 TR shaft at the fwd blower splines. The aft end of the #3 shaft would bolt to the #4 shaft at the distorted hanger bearing mount.

I think a good question would be what caused the #4 hanger bearing to fail and where are the #3, #4, #5 TR shafts?



​​​​​​​

https://cimg4.ibsrv.net/gimg/pprune....82f201fc7.jpeg


This is the tailboom of a Long Ranger that suspectedly got into the Van Horn bounce. The pilot was extremely lucky to get it on the ground and it all happened within seconds. The landing was not hard at all.

Eerily similar damage wouldn’t y’all say?

Blade does not own any helicopters. They use various New York operators, New York Heli being one of them. They usually took care of the shorter airport transfers around the city in their 206s. So yes, that would be the same aircraft.

Interesting. Was told Blade quit using them after the last CH 11 filing. Thanks.

And rightfully so and spoken well !!

Blimey. That's very similar, innit.

Wild guess: still somewhere in the river.

Something I noticed tonight as I was reading through, that I hadn't noticed before in the pictures. The very straight line of the break on the left side of the tail, compared to the more can opener style of damage to the bottom and right side.

Would a crack lead to such a straight break?
I wouldnt think a crack would propogate in such a straight line, but a straight line in a crash where everything else looks like a beer can seems odd to me.
If my blade directions are right, if something,(crack, harmonics like the picture above, FOD denting the tailboom?) caused the tail to weaken, the tail rotor would fold the tail to the right like the accident sequence?

Thanks wrench1 (#332) for explaining tail rotor drive components and their arrangement. On the basis the L-3 drawing remains representative of an L-4 in terms of overall layout, I added abbreviated labels pointing towards the items you described (hopefully correctly).

https://cimg0.ibsrv.net/gimg/pprune....9de4237269.jpg

As with TwinHueyMan (#333) and JamesT73J, I certainly see the similarities between both tail boom failures, only that one managed to "hang on".

Returning to post #259 by SansAnhedral where the missing tip of one rotor blade was sketched onto the photo of the recovered rotor, I was wondering if there was any evidence of that part already being missing off the main rotor on its way down. If you view from 0:46 in the following clip, you could certainly convince youself a portion was already missing in the air: To illustrate, a screen shot from that video:
https://cimg6.ibsrv.net/gimg/pprune....30b995c2fa.jpg
So question then is whether the missing 'tip' was the 'first' failure (causing substantial unbalance in rotor with 1 per rev vibration), or did the tip only fail after striking tail boom due to a substantial rotor 'hop' or deflection or as tail boom parted? In post #329 Bell_ringer reports seeing the tail boom passing through main rotors, but on the videos I have come across, the helicopter is too grainy to make out much at that point. Is there a clearer clip somewhere zoomed into the helicopter?

https://cimg2.ibsrv.net/gimg/pprune....f506f445c1.png

It looks like at some point the main rotor blades may have clipped the fin on the horizontal stabilizer (marked orange line)

Orange line should be from up right to down left

skadi

Not if the boom had swung round to the starboard side...

I agree that in a typical tail boom strike it would be the other direction but I believe I've marked the damage correctly and the face of the damage appears consistent with the direction of the main rotor.
It looks like it would have already detached or possibly twisted/rotated to make such damage possible and to be in-plane with the rotor disc.

I agree!
Now I have looked on a bigger screen and I`m with you that the bladestrike was not the primary cause of this accident as many here suggested first.

skadi

There is also this interesting PPRuNE thread on Van Horn blades from 2022.

I've bolded what could also be a similarity to this accident, 3 small children and the pilot's radio call for a refuel.

I think the blades may have hit the tailboom twice after it departed especially when you line up the parts as shown in the pic. Takes a lot of energy to slice the stabilizer at the winglet like that. The inboard break looks more like impact damage.
https://cimg5.ibsrv.net/gimg/pprune....74319b223b.jpg

Looks like some operators are taking some precautions... We received this email last week -->"We have a couple sets of lightly used 206L Van Horn blades on consignment P/N 20633000-101.

The prices are negotiable.

S/N A0XX Time since new: 1083.2 Time remaining: 14916.8 Asking price: $49,954

S/N A0XX Time since new: 1083.2 Time remaining: 14916.8 Asking price: $49,954

S/N A2XX Time since new: 100.6 Time remaining: 15899.4 Asking price: $66,750

S/N A2XX Time since new: 100.6 Time remaining: 15899.4 Asking price: $66,750"

https://demerarawaves.com/2022/12/07...pper-grounded/

As an aside, is there any particular advantage to the composite blades? What do they gain a 206 operator - are they more durable, easier to set (I know that's not the right word), or something else?

Cost. Bell blades have a 4000hr retirement. The Van Horn blade itself has a 16,000hr retirement with the metal grip plates replaced every 4000hrs.

Bell has also had a lot of issues in their blade shop in the last several years, rumor has it not many 206 blades make it past QC and out the door. Supply has dried up on OEM blades with Bell often giving “guesses” on when a blade order will be delivered (as alluded to earlier in this post). Some question if the 206B blades are even still being made, and the 206L blades have a priority to the 505 line.

Van Horn has blades in stock usually, plus they give you a bump in cruise speed, snappier handling, arguably more lift, and lower DOCs. Before the truth behind the bounce came to light it was all but a no-brainer.

I have also wondered about the damage seen at the tail boom fracture. In steady level cruising flight with the main rotor turning anti-clockwise (viewed from above) the tail rotor needs to provide an anti-clockwise anti-torque moment to the fuselage hence a tail rotor thrust directed to the right. The vertical stabilizer, with an apparent 5.5 degree incidence angle* to the fuselage centreline also provides an anti-torque side-force when in cruising flight. See following sketch:
https://cimg0.ibsrv.net/gimg/pprune....7bf567c059.png

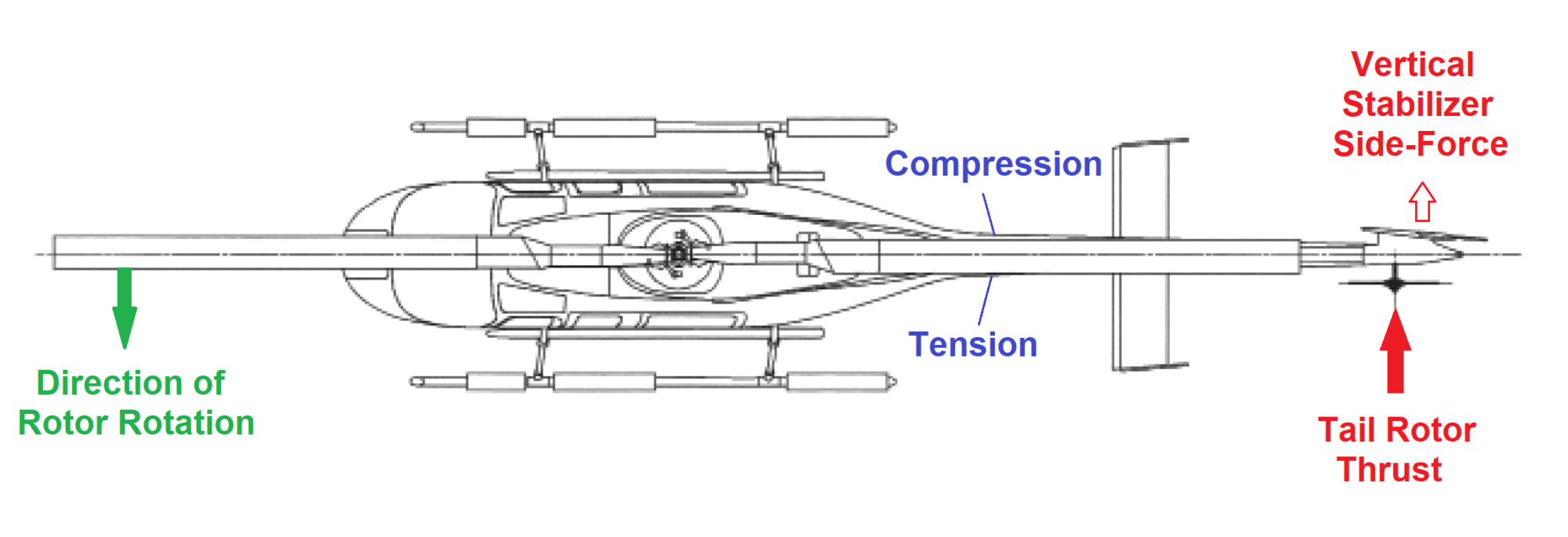

With those forces on the tail, the left side of the tail boom will generally be in tension while right side will be in compression. Add in some tail boom vibrations or a sudden yaw and the compression on the right might increase further. Buckling only occurs due to compressive loads, so it seems logical that typically buckling might first occur on the right side. With a tail boom significantly weakened due to buckling, the right side could simply fracture in tensile overload. Where would that occur? Through a line of drill holes to accommodate the rivets attaching a frame to the inside of the boom (as is the case here). Those holes create stress-raisers and so it is the weakest place on the skin to resist tension. If the aircraft has accumulated many hours and load cycles, it is possible some of these holes already had fatigue cracking as well, but not significant enough to have been observed. Still, the talk earlier in the thread that this helicopter had a more noticeable recent tail waggle on the ground is a worrying sign.
