Radar/Surface movement radar
Hi,

I would like to see some photos/pictures of a surface movement radar or any ATC radar screen if possible?

Anyone have any they can send or link me to?

Googled it using different terms and doesn't yield anything unfortunately.

For an IT presentation

Cheers, thanks for your time.

725308 is offline
Reply
Old 11th October 2006, 19:12   #2 (permalink)

Join Date: Jul 1999
Location: 58-33N. 00-18W. Peterborough UK
Posts: 1,809
Animation of a Runway Incursion. Not quite what you asked for but it may be useful. The animation is the second item down.
http://www.ntsb.gov/events/2000/incu...ncur_video.htm
forget is offline   Reply
Old 11th October 2006, 22:19   #3 (permalink)

Join Date: May 2006
Location: Netherlands
Age: 27
Posts: 6
Hi,

Picture of the SMR system at Schiphol Airport.

http://nl.wikipedia.org/wiki/Afbeeld...radar_EHAM.jpg

Cheers,

Michiel
djdruid is offline   Reply
Old 13th October 2006, 15:51   #4 (permalink)
Probationary PPRuNer

Join Date: Oct 2006
Location: Norway
Posts: 1
Not a good picture but maybe something in the brochure you can use:

http://www.parkairsystems.com/index.asp?id=84
VoiceCom is offline   Reply
Old 15th October 2006, 12:18   #5 (permalink)
MrApproach

Join Date: Aug 2001
Location: Australia
Posts: 93
This is the Sensis brochure, with picture

http://www.sensis.com/docs/318/

MrApproach is offline
Reply
Old 17th October 2006, 14:08   #6 (permalink)
Muldrake

Join Date: Oct 2002
Location: Denmark
Posts: 24
http://www.naviair.dk/media/list/-40...aviair-072.jpg

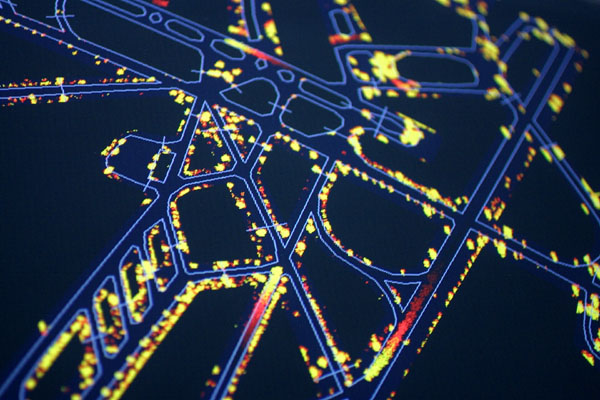

The old radarpicture in EKCH. They now have an upgraded system, with labels and all sorts of gizmo's
